CURSOR13TE2A.A004

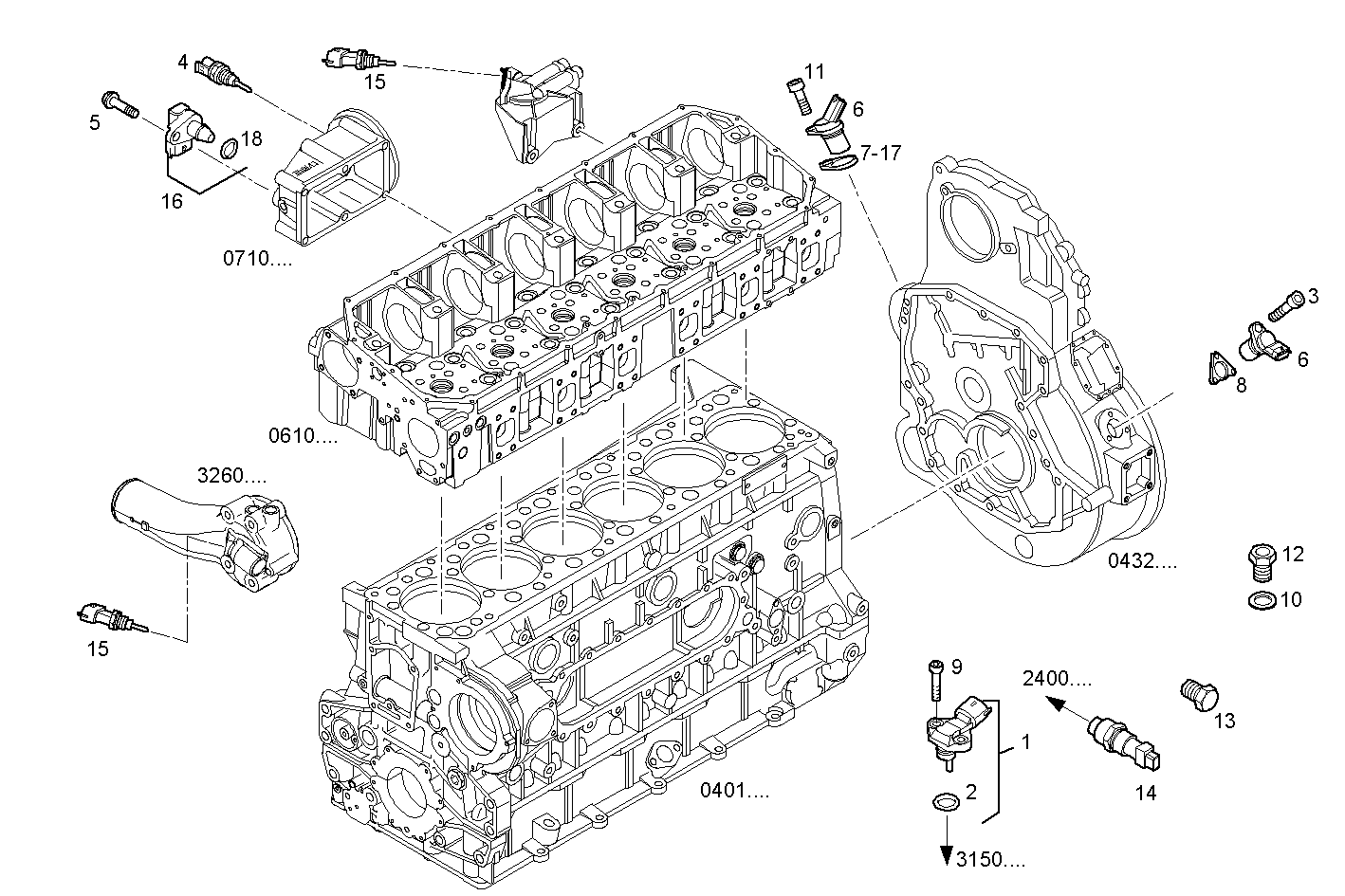

1710.026 SENSORS

Iveco/FPT SENSORS

Item Part number Description
1 4890193 SENSOR OIL PRESS. & TEMPER.
2 4895477 O-RING
3 16688925 CYLIND-HEAD SCREW M6X10
4 504109620 SENSOR umidity detection [UP TO # 50587]
5 16597225 HEXAGON BOLT M6X18 MM
6 504096645 SENSOR
7 504113543 SPACING BAR [UP TO # 56439]
8 504113483 SPACING BAR
9 4899110 HEXAGON BOLT
10 99489017 SEAL GASKET Ø12X20 MM SP=1,5 MM
11 16689324 SCREW M6X25
12 16992211 THREADED PLUG M12X1,5
13 504167389 THREADED PLUG [FROM # 56440]
14 500377533 SENSOR Pressure
15 500382599 TEMP. TRANSMITTER PRESS. & TEMPER.
16 504073323 SENSOR AIR PRESS. & TEMPER. [FROM # 158928]
17 504163664 CONNECTING PLATE
18 42546555 O-RING [FROM # 158928]
