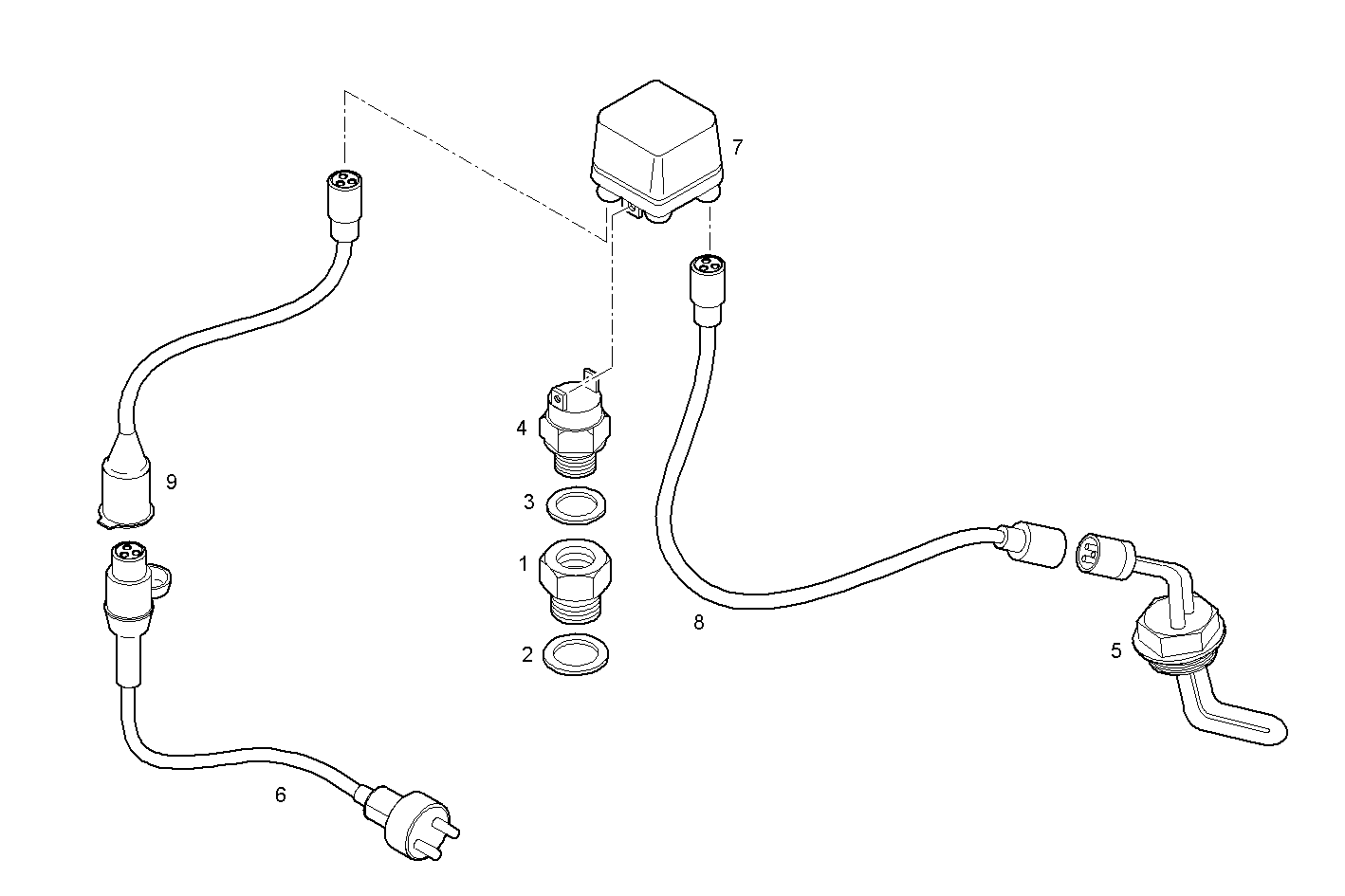

A20040510 WATER PREHEATER DEVICE - 230V - 24V
Item | Part number | Description |
---|---|---|
1 | 4928330 | PIPE SOCKET M16X1,5/M14X1,5 |
2 | 98474309 | WASHER Ø16X24 MM SP=1,9 MM |
3 | 98474308 | SEAL GASKET Ø14X22 MM |
4 | 8038597 | THERMOSWITCH |
5 | 8038725 | HEATER |
6 | 504084179 | WIRE/CABLE |
7 | 8038600 | RELAY 24V |
8 | 8038507 | WIRE/CABLE |
9 | 503111089 | WIRE/CABLE |
