CURSOR13TE3X.R991

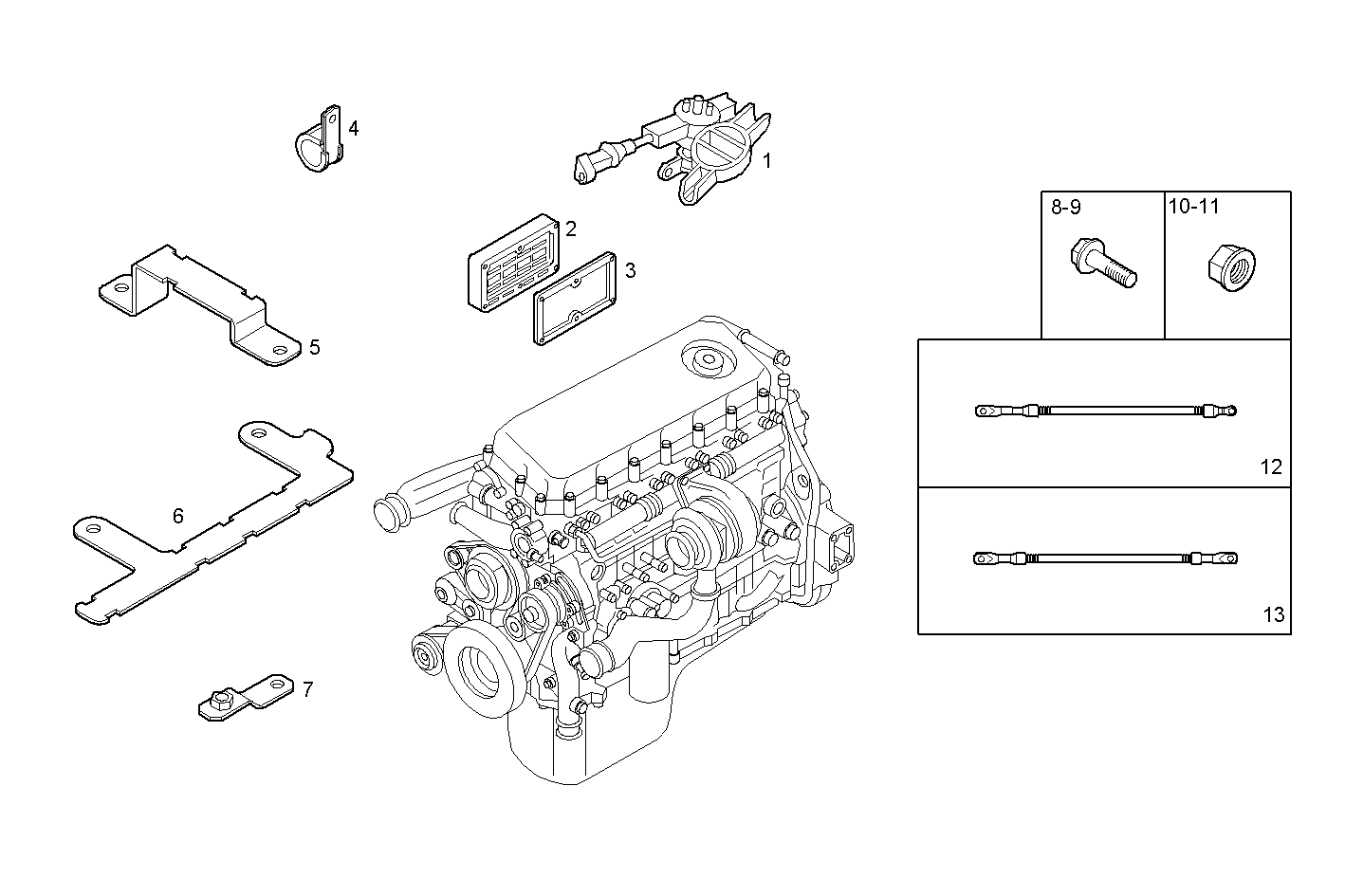

3650.049 THERMO-STARTER

Iveco/FPT THERMO-STARTER

Item Part number Description
1 99449300 RELAY 24v-150a
2 99437042 RESISTOR
3 504026624 FLAT ENGINE GASKET
4 10450990 PIPE CLIP
5 504143982 SUPPORT
6 504143981 SUPPORT
7 504143387 FASTENING BRACKET
8 16597925 HEXAGON BOLT M8X14 MM
9 16585625 HEXAGON BOLT M6X12
10 17044625 HEXAGON NUT M6
11 16750225 HEXAGON NUT M8
12 504119997 WIRE/CABLE
13 504206835 WIRE/CABLE
