CURSOR78TE2.A001

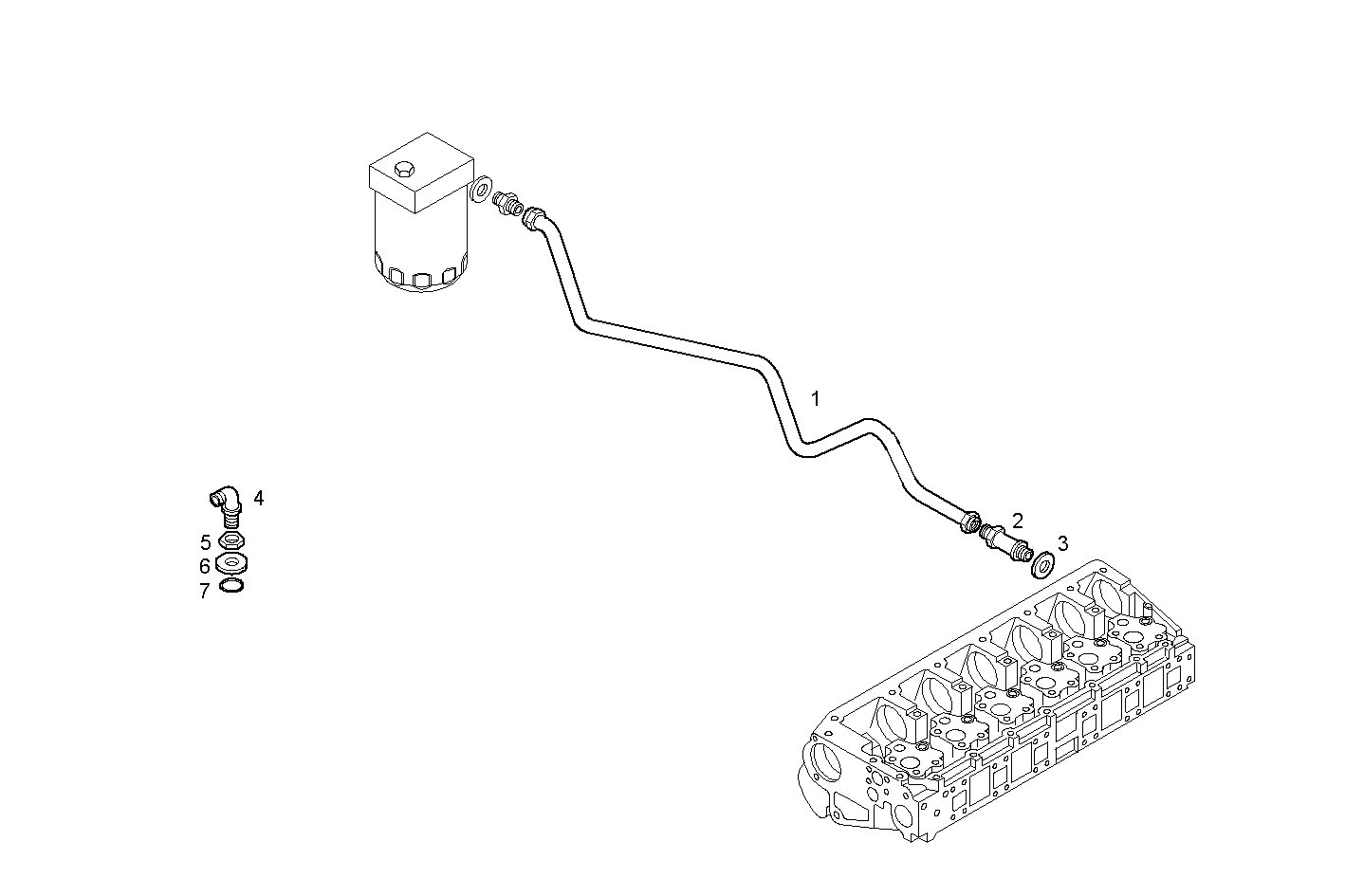

2034.006 FUEL LINES - FILTER TO CYLINDER HEAD

Iveco/FPT FUEL LINES - FILTER TO CYLINDER HEAD

Item Part number Description
1 500376678 FUEL LINE
2 99455350 CONNECTION PIPE M16X1,5 - M18X1,5
3 99489019 WASHER Ø16X24 MM SP=1,5 MM
4 99480675 ELBOW COUPLING
5 16508711 NUT M14X1,5 [from 05-92]
6 2517122 SUPPORT RING
7 2517104 RUBBER RING
