CURSOR78TE2.A002

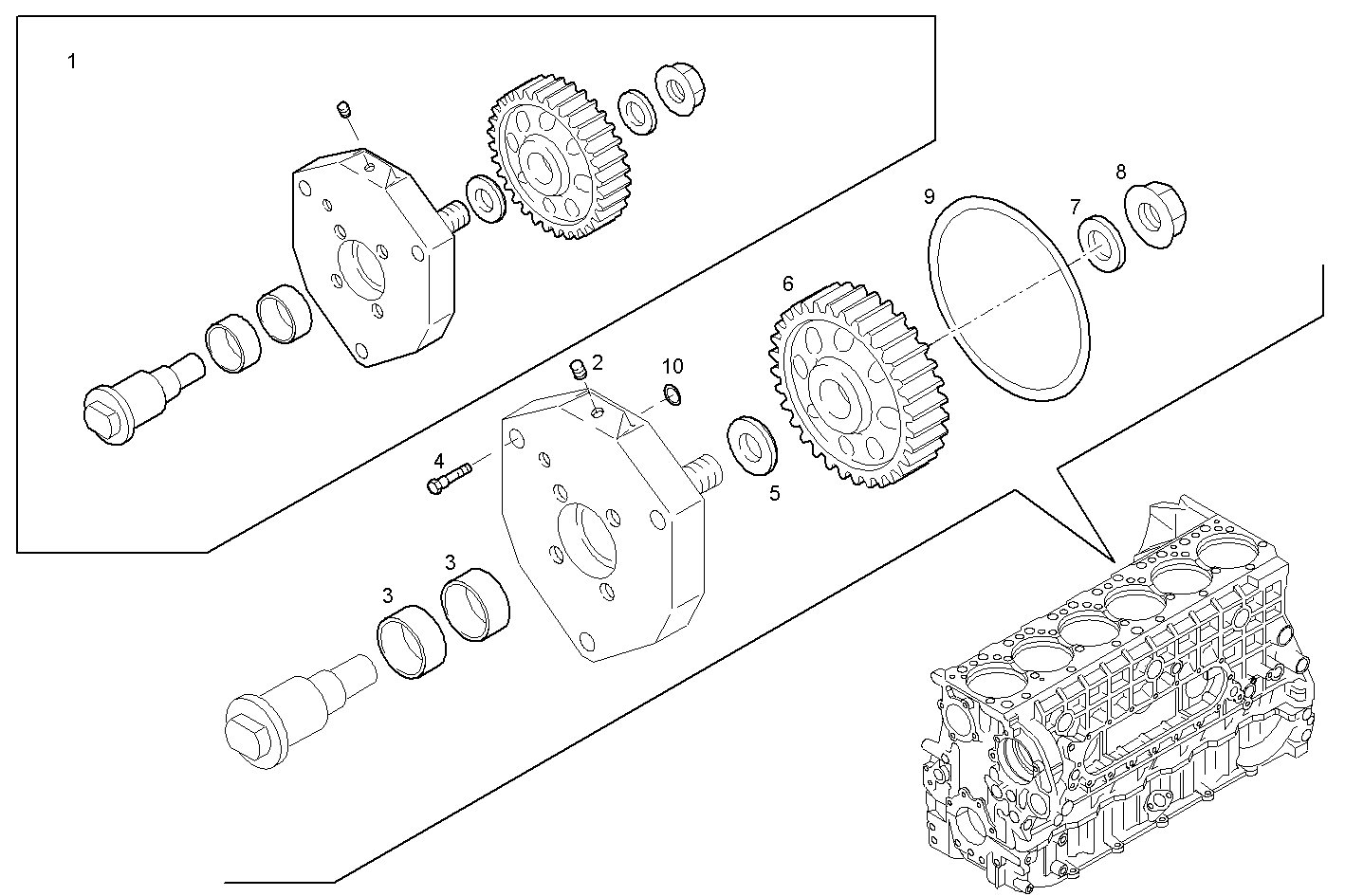

3500.049 POWER TAKE OFF
Item | Part number | Description |
---|---|---|
1 | 500354354 | POWER TAKE OFF ASSY |
2 | 504051236 | THREADED PLUG DIAM=1/8" |
3 | 4788087 | BUSH VANDERVELL |
4 | 16678135 | HEXAGON BOLT M12X45 MM |
5 | 500351319 | WASHER |
6 | 500351009 | GEAR |
7 | 17096014 | WASHER Ø20X37 MM |
8 | 17046231 | NUT M20 |
9 | 17292281 | O-RING Ø126,59 MM SP=3,53 MM |
10 | 17281381 | O-RING Ø9,19 MM [FROM TO # 62977] |
