CURSOR78TE2S.A001

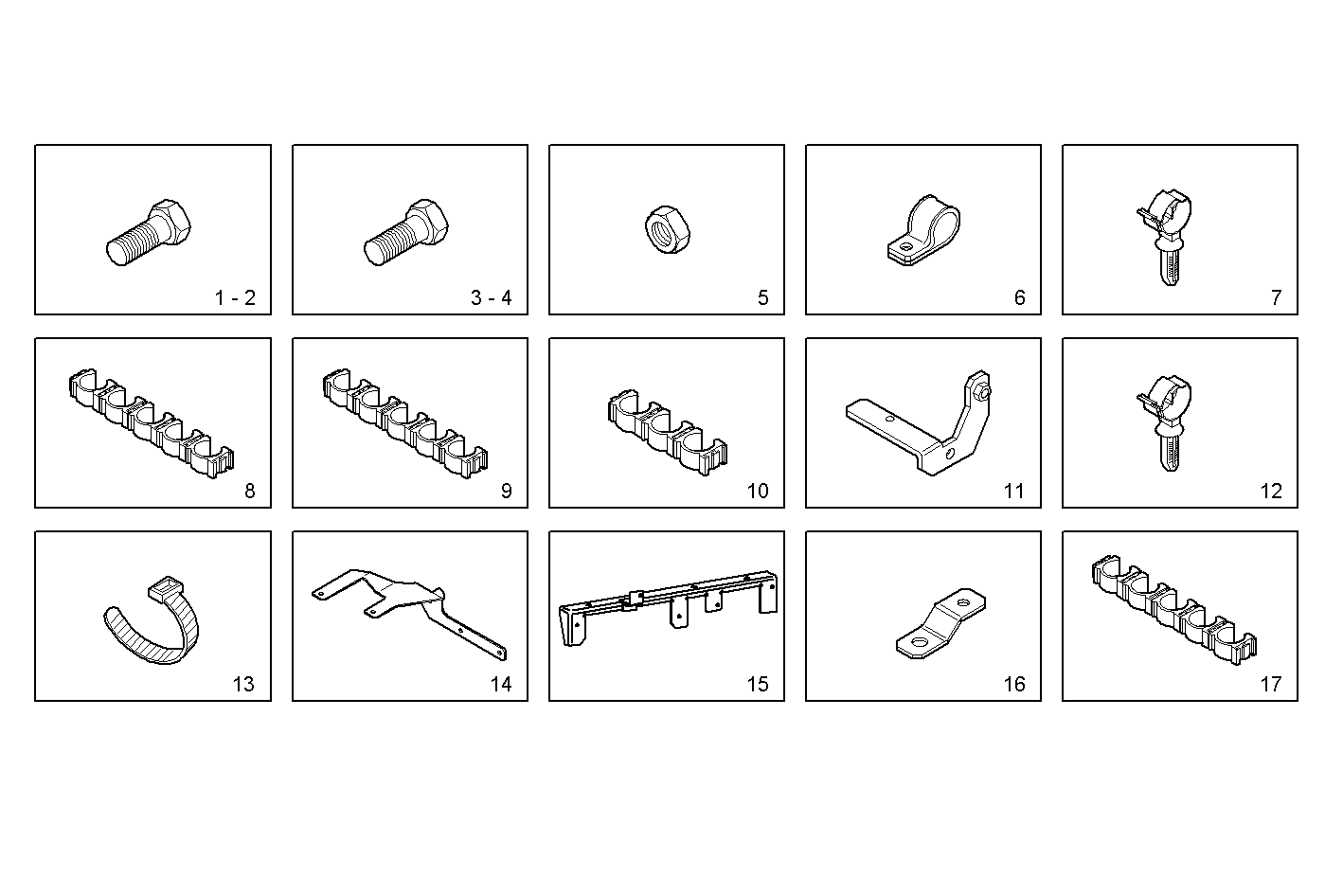

0407.006 FIXING EQUIPMENT
| Item |
Part number |
Description |
|
1 |
18137825 |
HEXAGON BOLT M6X16 |
|
2 |
18139424 |
HEXAGON BOLT M10X20 MM |
|
3 |
16586625 |
HEXAGON BOLT M8X35 MM |
|
4 |
16597925 |
HEXAGON BOLT M8X14 MM |
|
5 |
17044625 |
HEXAGON NUT M6 |
|
6 |
17314990 |
FASTENING BRACKET |
|
7 |
99455033 |
CLIP |
|
8 |
500306941 |
SPRING CLAMP |
|
9 |
500373006 |
SPRING CLAMP |
|
10 |
504060998 |
SPRING CLAMP |
|
11 |
500389105 |
FASTENING BRACKET |
|
12 |
504000063 |
CLIP |
|
13 |
504023286 |
CABLE STRAP |
|
14 |
504038594 |
FASTENING BRACKET |
|
15 |
504040060 |
FASTENING BRACKET |
|
16 |
504049754 |
FASTENING BRACKET |
|
17 |
504128743 |
SPRING CLAMP |
