CURSOR78TE2S.A001

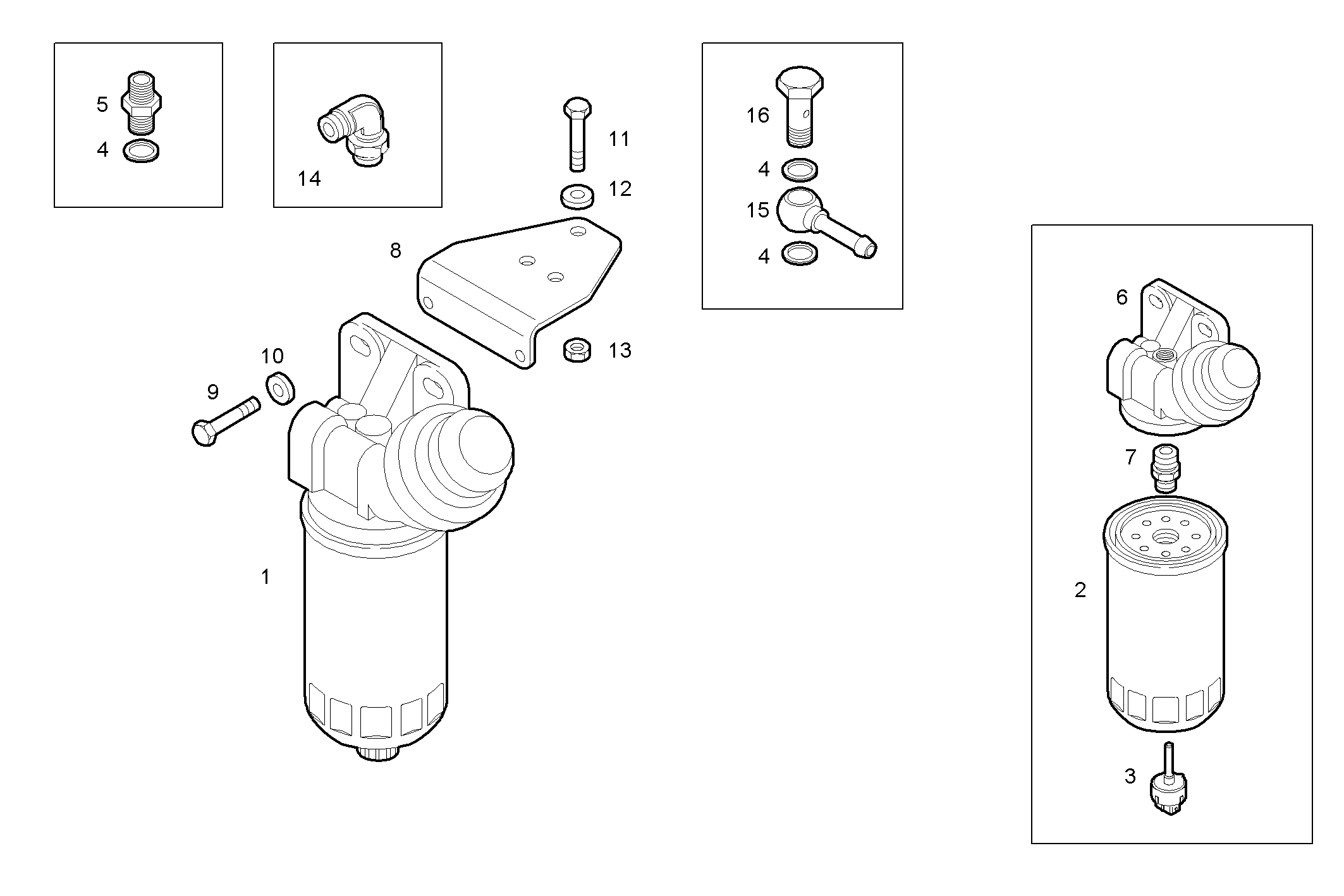

2090.006 FUEL PREFILTER

Iveco/FPT FUEL PREFILTER

Item Part number Description
1 504057743 PREFILTER ASSY
2 2992662 FUEL FILTER ELEM.
3 42540203 SENSOR WATER
4 99489018 SEAL GASKET Ø14X22 MM SP=1,5 MM
5 8014143 PIPE SOCKET M14X1,5
6 42545573 FUEL FILT.SUPPORT
7 42545574 THREADED UNION
8 8040177 RETAINER
9 16673635 HEXAGON BOLT M8X1.25X20
10 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
11 16609425 HEXAGON BOLT M10x32 MM
12 17090174 SPRING WASHER Ø10X20 MM
13 17038131 HEXAGON NUT M10
14 16504114 ELBOW COUPLING M18X1,5
15 98404882 PIPE SOCKET Ø8 MM
16 4864083 SCREW CONNECTOR M14X1,5X30 MM
