CURSOR78TE2S.A001

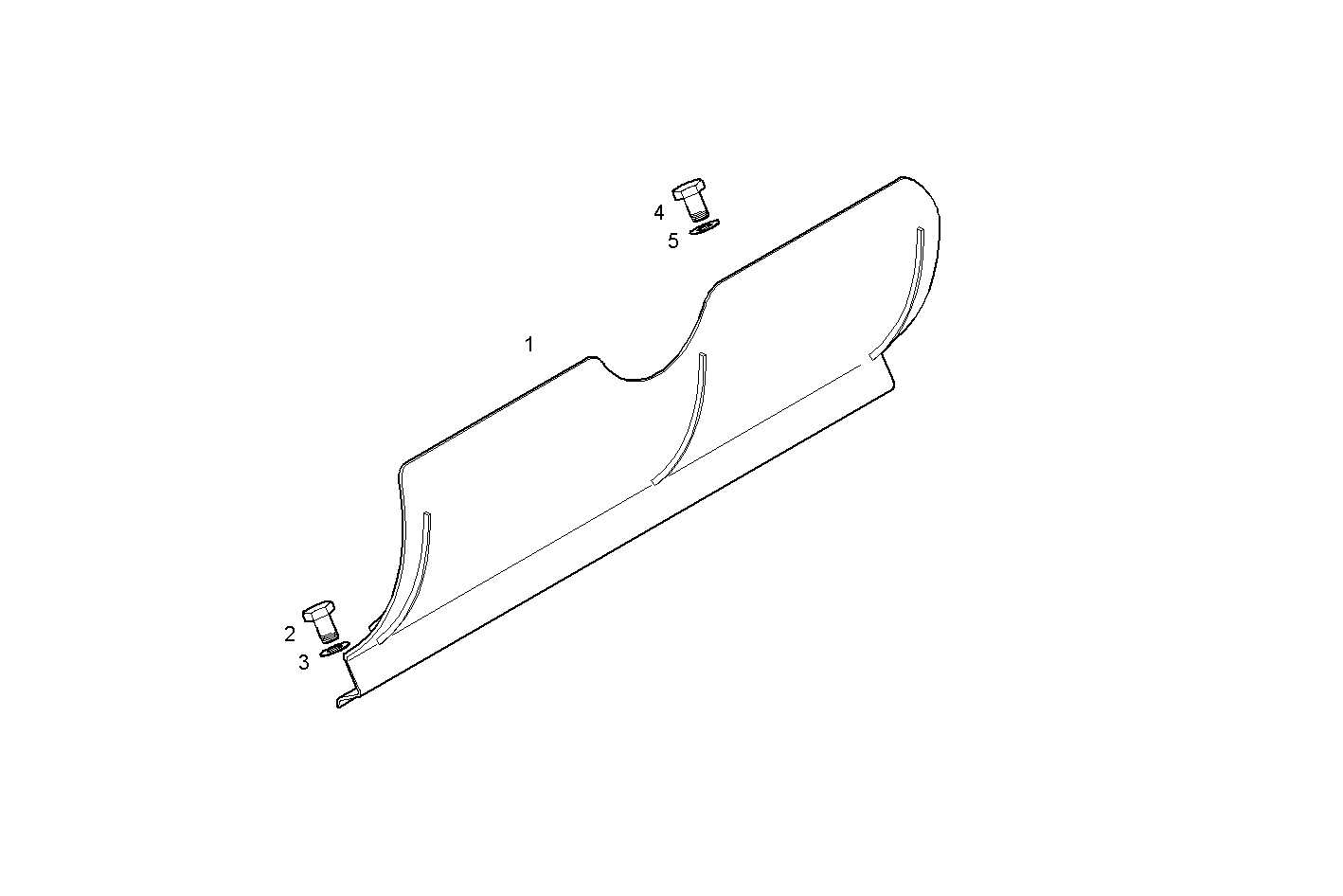

5770.049 SHIELDS
Item | Part number | Description |
---|---|---|
1 | 8037283 | PROTECTION |
2 | 16607625 | SCREW M10X25 |
3 | 17090174 | SPRING WASHER Ø10X20 MM |
4 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
