Catalogue Menu

CURSOR78TE2S.A001

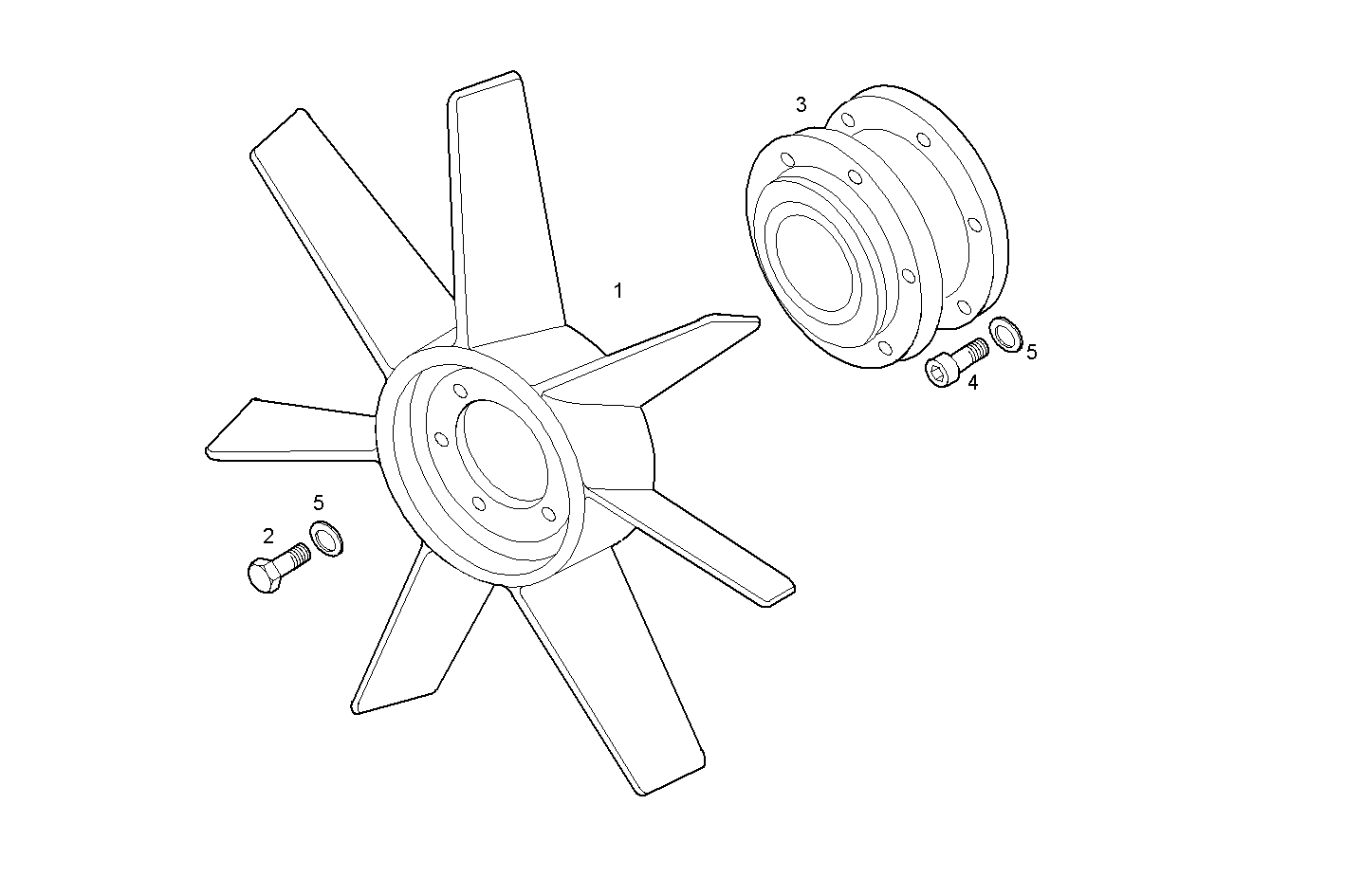

A08010518 PUSHER FAN - dia. 700

Iveco/FPT PUSHER FAN

Item Part number Description
1 8041461 FAN EIGHT BLADES
2 16690724 CYLIND-HEAD SCREW M8X30 MM
3 8045750 HUB
4 16690924 CYLIND-HEAD SCREW M8X40 MM
5 17096824 WASHER Ø8,40X15 MM
