CURSOR87TE1D.A001

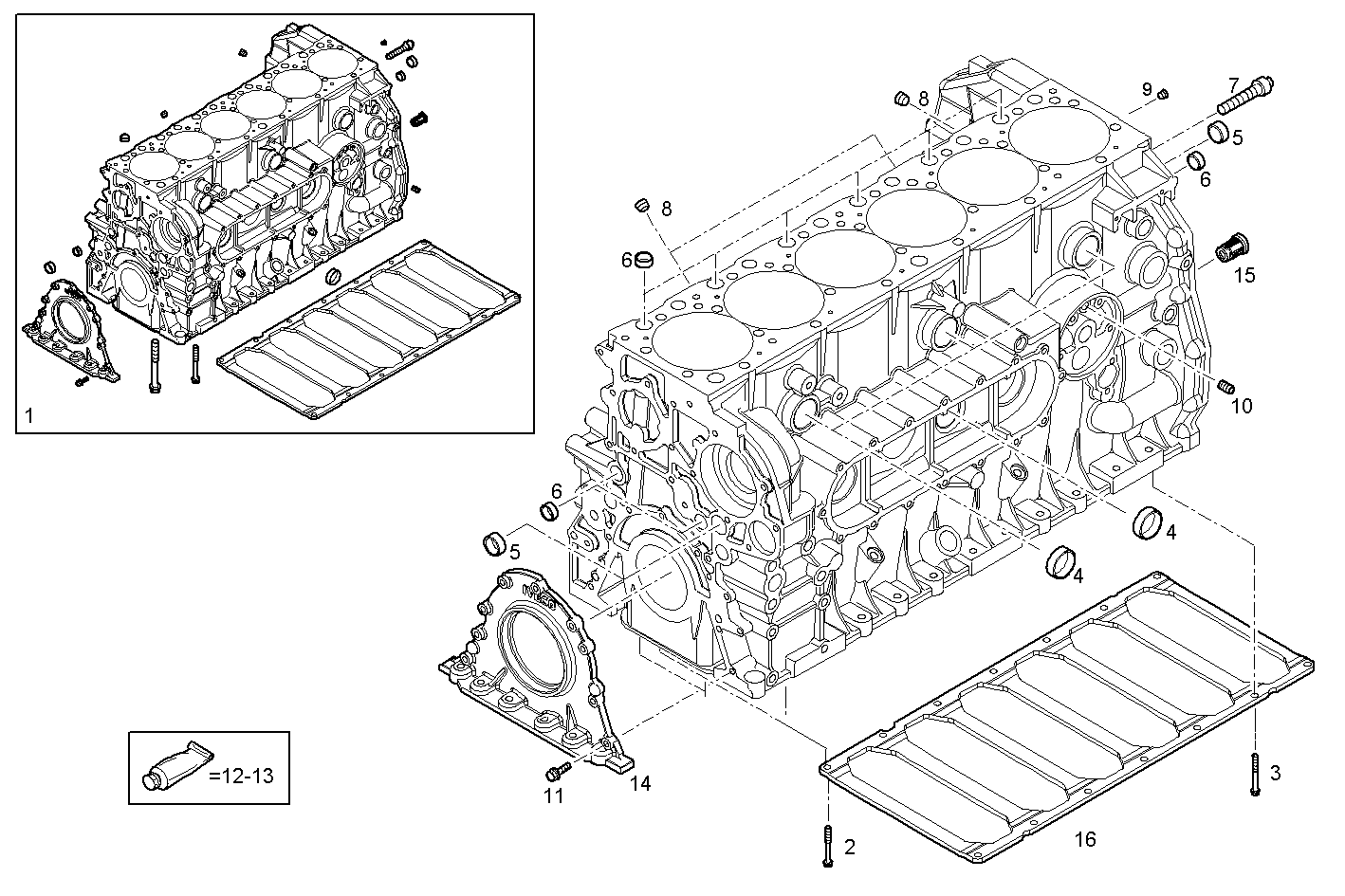

0401.015 CRANKCASE
| Item |
Part number |
Description |
|
1 |
504219039 |
CRANKCASE |
|
2 |
504125417 |
HEXAGON BOLT M16X2X68 MM |
|
3 |
18139424 |
HEXAGON BOLT M10X20 MM |
|
4 |
16991370 |
LOCK PLUG Ø45 MM |
|
5 |
16990870 |
LOCK PLUG Ø28 MM |
|
6 |
16990670 |
LOCK PLUG Ø22 MM |
|
7 |
500356932 |
LOCK PLUG Ø12 MM |
|
8 |
504051237 |
THREADED PLUG DIAM=1/4" |
|
9 |
504051236 |
THREADED PLUG DIAM=1/8" |
|
10 |
500314967 |
DOWEL PIN Ø10 MM |
|
11 |
16673735 |
HEXAGON BOLT M8X25 MM |
|
12 |
2992695 |
ADHESIVE/STICKER LOCTITE |
|
13 |
2995644 |
ADHESIVE/STICKER |
|
14 |
504125098 |
FRONT C.CASE COVER |
|
15 |
504142601 |
VALVE |
|
16 |
504127723 |
STIFFENING PLATE |
