CURSOR87TE1D.A001

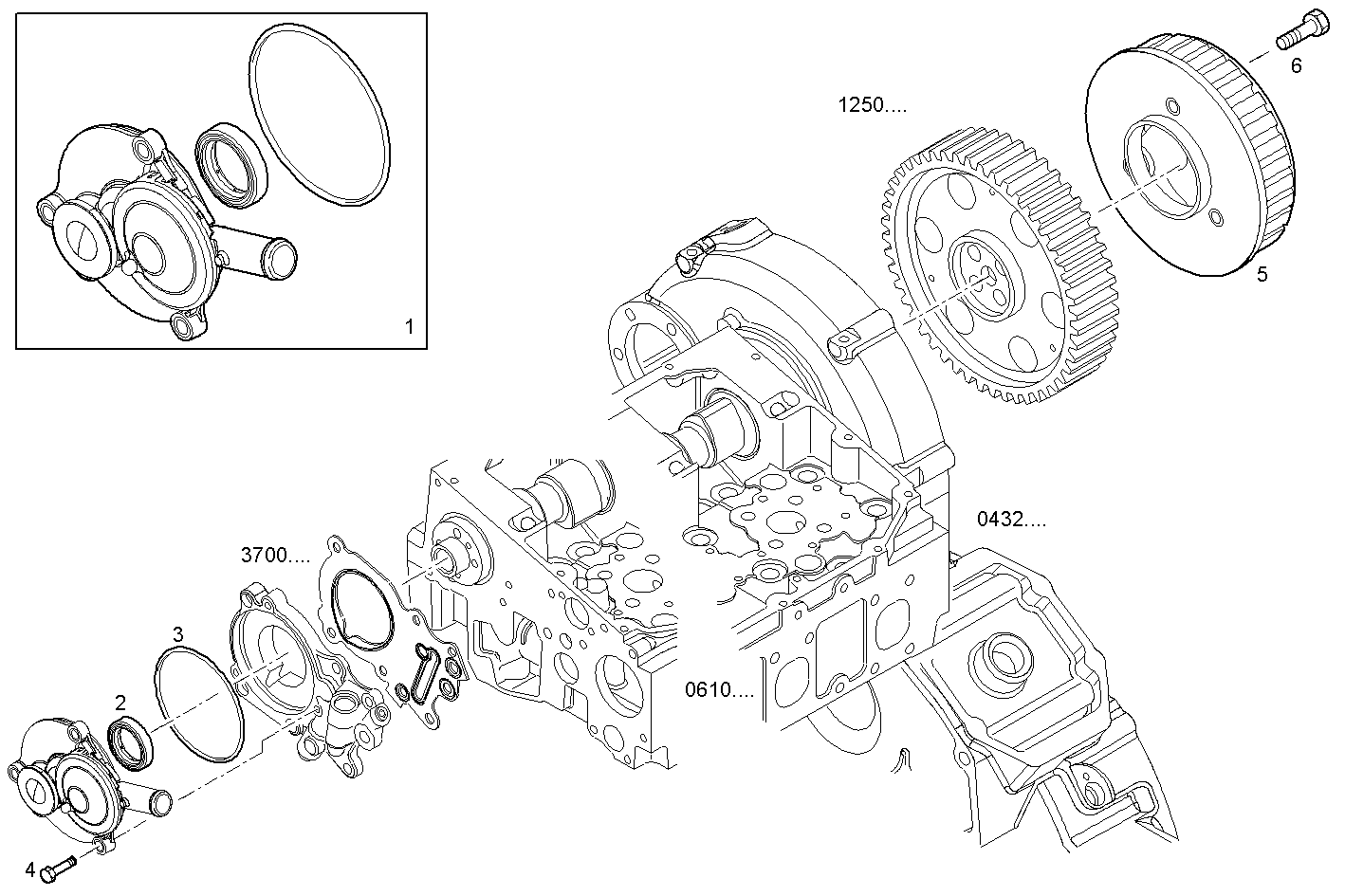

0450.224 ENGINE BREATHERS
Item | Part number | Description |
---|---|---|
1 | 504089127 | BREATHER ASSY |
2 | 504050244 | SHAFT SEAL |
3 | 17291281 | O-RING Ø94,84 MM SP=3,53 MM |
4 | 16585825 | HEXAGON BOLT M6X20 MM |
5 | 504127720 | FILTER |
6 | 18137825 | HEXAGON BOLT M6X16 |
