CURSOR87TE1D.A001

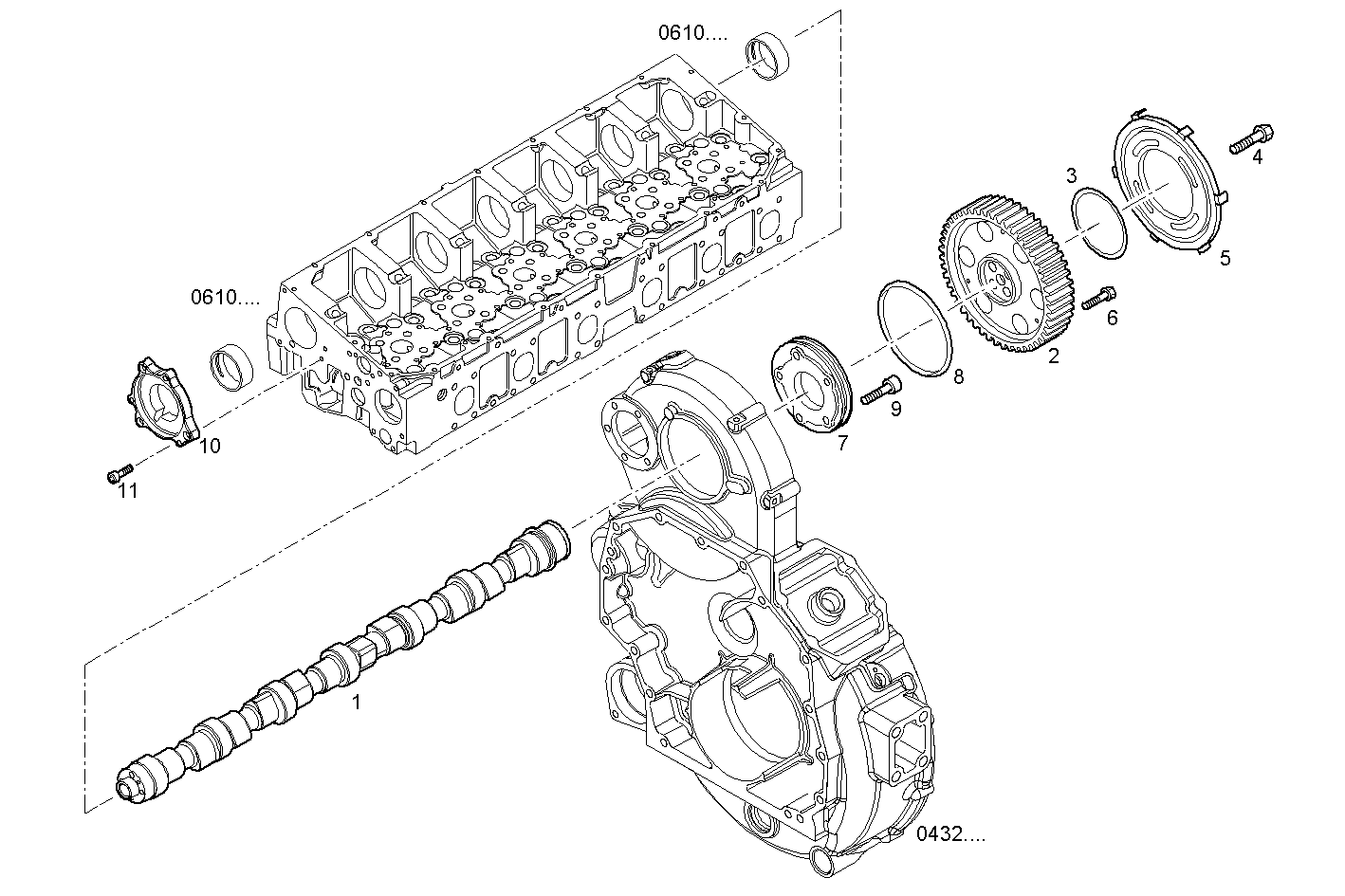

1250.030 TIMING PARTS
Item | Part number | Description |
---|---|---|
1 | 504254723 | CAMSHAFT |
2 | 504124637 | CAMSHAFT PINION |
3 | 17290781 | O-RING Ø78,97X3,53 MM |
4 | 16676135 | HEXAGON BOLT M10X45 MM |
5 | 504142643 | PLATE |
6 | 500359731 | HEXAGON BOLT M6X1X25 MM |
7 | 504127775 | COVER REAR |
8 | 17292381 | O-RING Ø129,8 MM SP=3,53 MM |
9 | 16586625 | HEXAGON BOLT M8X35 MM |
10 | 504134066 | COVER FRONT |
11 | 504010467 | CYLIND-HEAD SCREW M6X1X20 MM |
