CURSOR87TE1D.A001

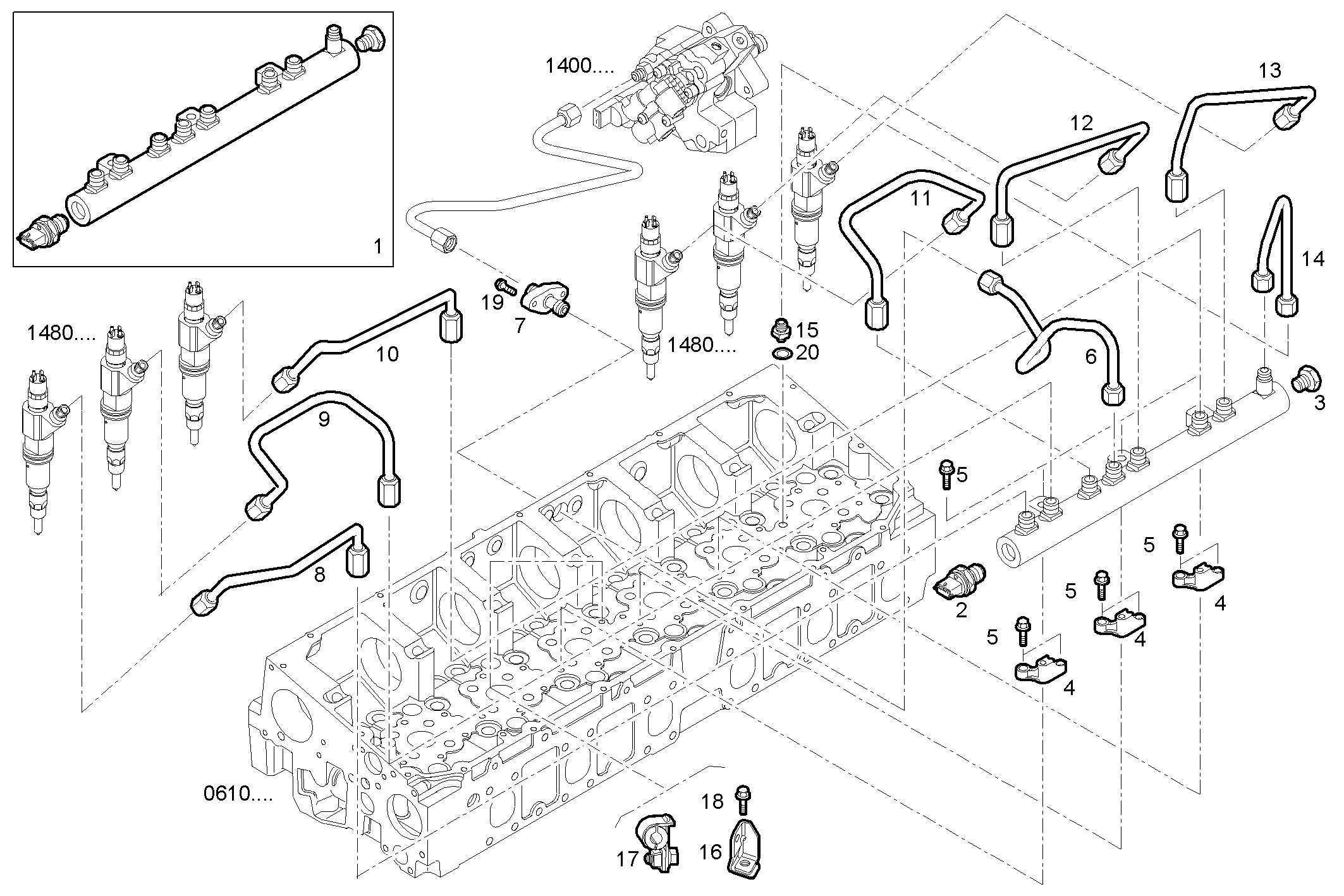

1400.427/02 INJECTION
| Item | Part number | Description |
|---|---|---|
| 1 | 504124845 | HYDRAULIC CYLINDER |
| 2 | 504157020 | SENSOR |
| 3 | 504130662 | VALVE |
| 4 | 504165892 | SPACING BAR |
| 5 | 16673735 | HEXAGON BOLT M8X25 MM |
| 6 | 504126978 | FUEL LINE |
| 7 | 504174173 | PIPE SOCKET |
| 8 | 504126981 | FUEL LINE |
| 9 | 504126982 | FUEL LINE |
| 10 | 504126983 | FUEL LINE |
| 11 | 504126984 | FUEL LINE |
| 12 | 504126985 | FUEL LINE |
| 13 | 504126986 | FUEL LINE |
| 14 | 504127531 | FUEL LINE |
| 15 | 504154956 | SCREW CONNECTOR |
| 16 | 504229845 | FASTENING BRACKET |
| 17 | 504235264 | FASTENING BRACKET |
| 18 | 16707034 | CYLIND-HEAD SCREW M8X16 MM |
| 19 | 16585825 | HEXAGON BOLT M6X20 MM |
| 20 | 98474305 | WASHER Ø10X17 MM SP=2,3 |
