CURSOR87TE1D.A001

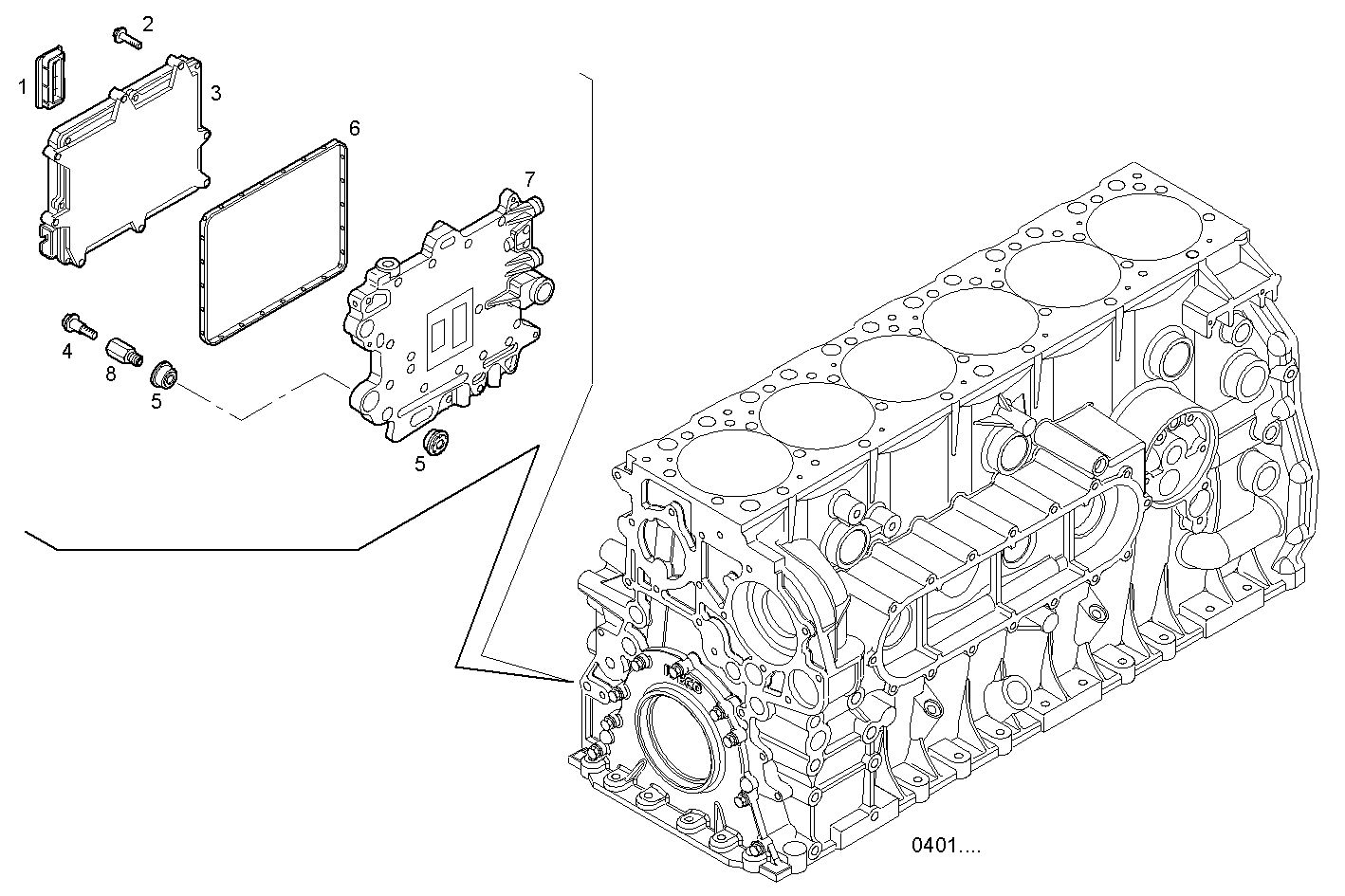

1701.010 ELECTRONIC CONTROL UNIT
Item | Part number | Description |
---|---|---|
1 | 504043102 | RUBBER PLUG |
2 | 16586025 | HEXAGON BOLT M6X30 MM |
3 | 8094789 | ELECTR.CONTR.UNIT E.C.U. |
4 | 16586825 | HEXAGON BOLT M8X1.25X45 MM |
5 | 98498817 | DOWEL |
6 | 504070042 | GASKET |
7 | 504097239 | SUPPORT |
8 | 99475194 | SPACING BAR |
