CURSOR87TE1D.A001

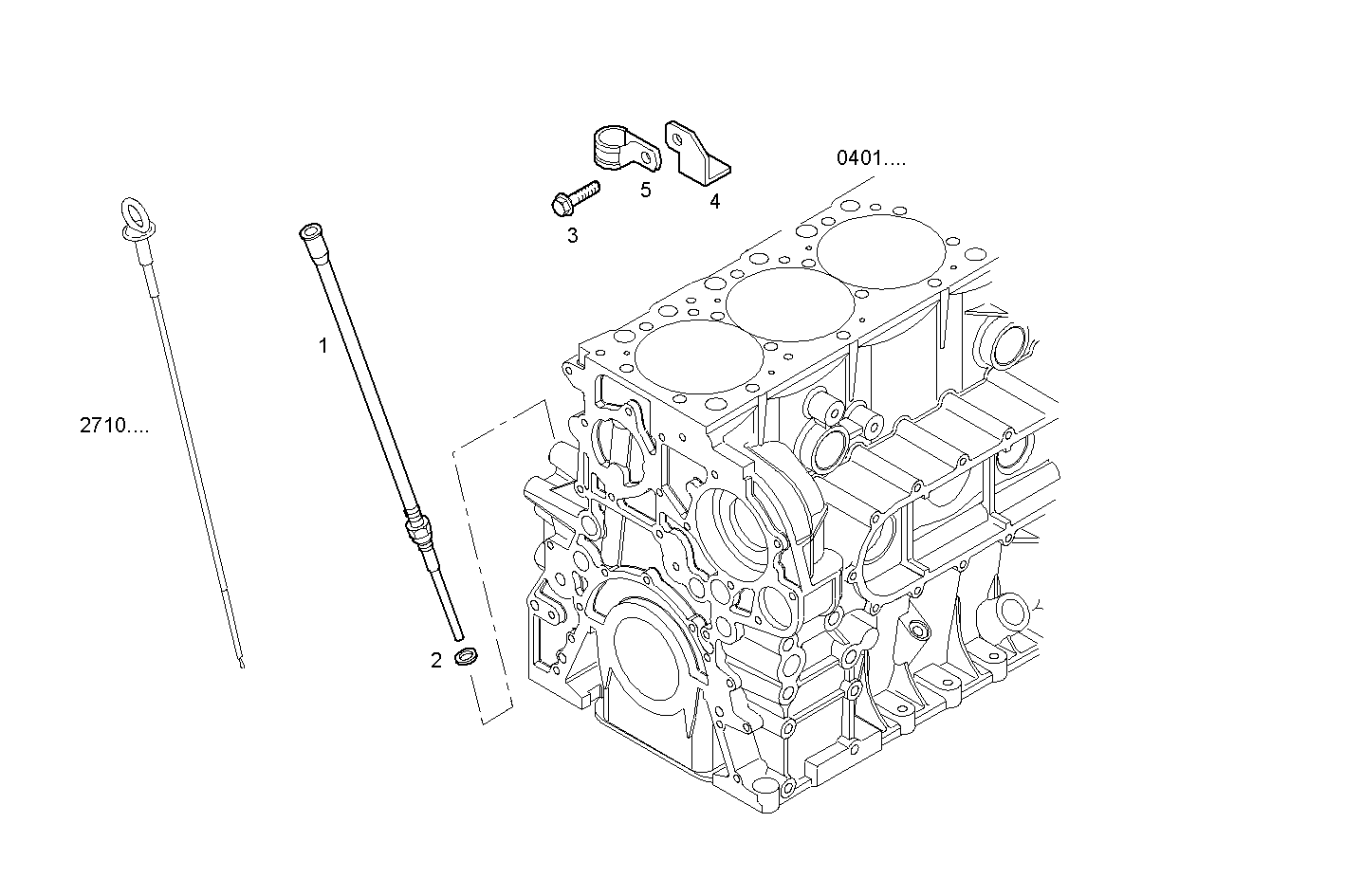

2712.026 OIL DIPSTICK PIPE
Item | Part number | Description |
---|---|---|
1 | 504323917 | OIL LEVEL TUBE |
2 | 99489020 | SEAL GASKET Ø18X26 MM SP=1,5 MM |
3 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
4 | 4791406 | RETAINER |
5 | 17316699 | PIPE CLIP Ø14 MM |
