CURSOR87TE1D.A001

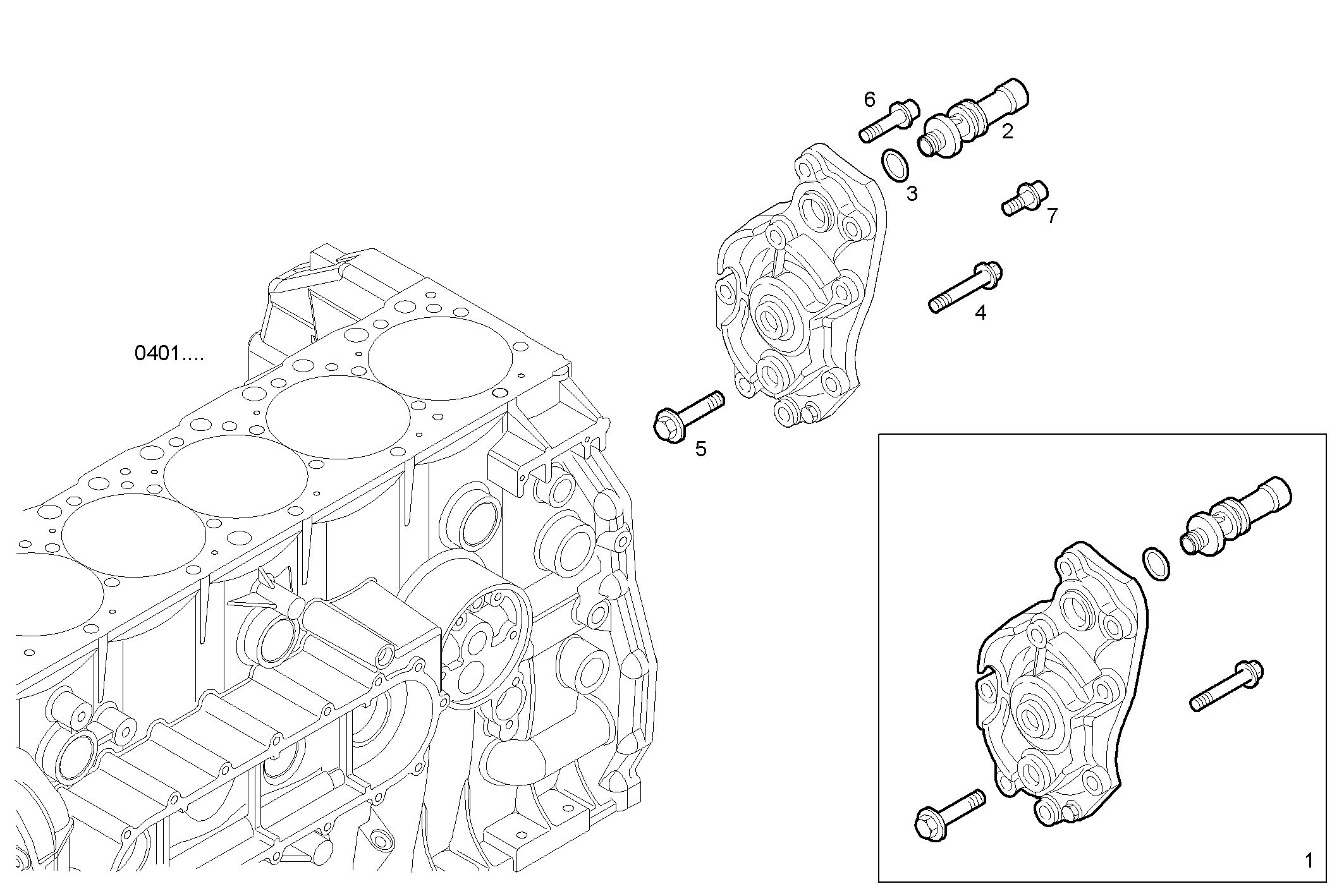

3001.005 OIL PUMP
Item | Part number | Description |
---|---|---|
1 | 504131225 | LUBE OIL PUMP |
2 | 500304389 | SAFETY VALVE |
3 | 17282181 | O-RING Ø21,8 MM SP=2,6 MM |
4 | 16591725 | HEXAGON BOLT |
5 | 18137825 | HEXAGON BOLT M6X16 |
6 | 500355363 | CYLIND-HEAD SCREW M8X1,25X60 MM |
7 | 504010370 | CYLIND-HEAD SCREW M8X1,25X45 MM |
