CURSOR87TE1D.A001

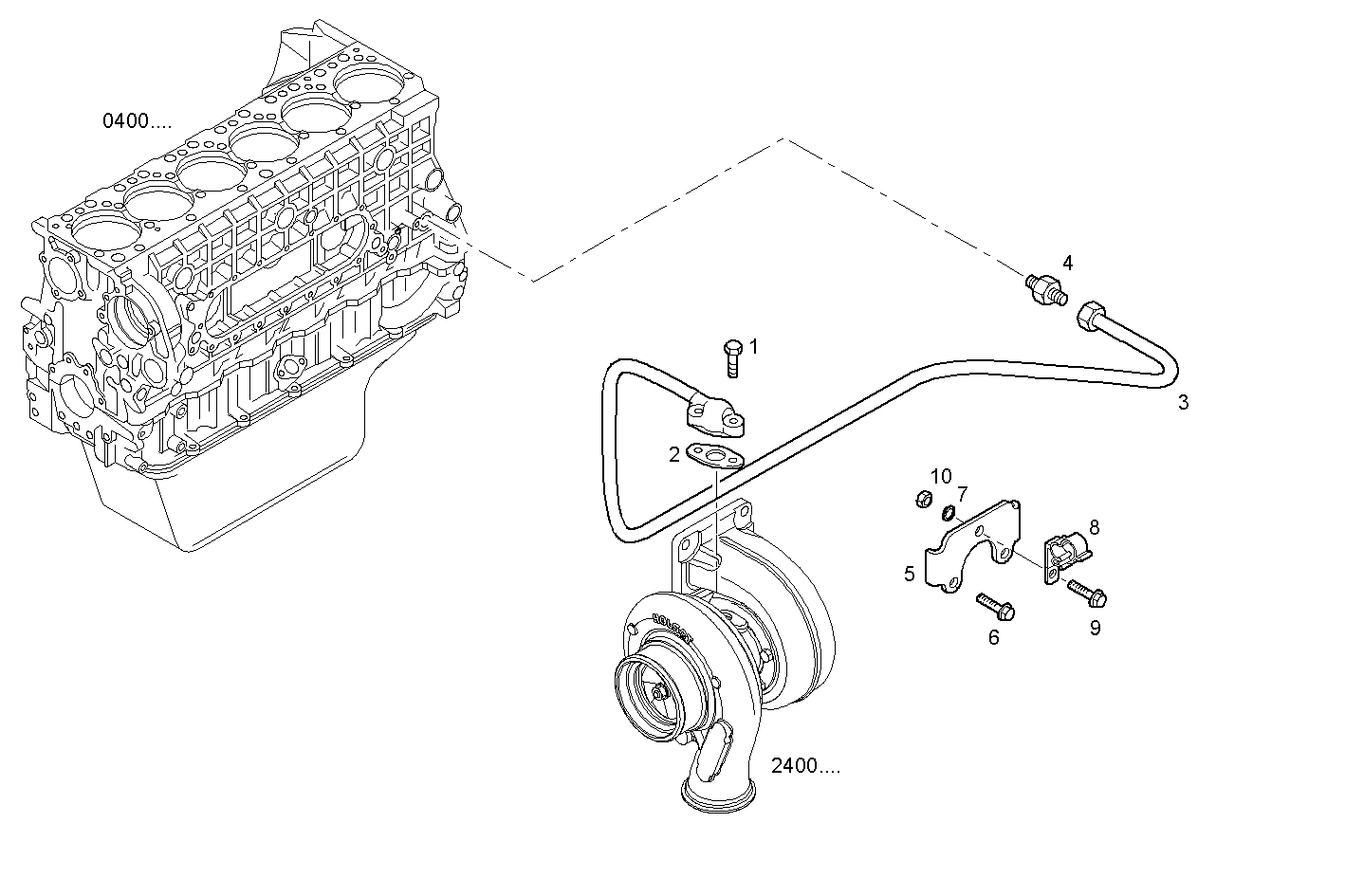

3064.022 OIL DELIVERY LINE
Item | Part number | Description |
---|---|---|
1 | 16586625 | HEXAGON BOLT M8X35 MM |
2 | 61318303 | GASKET |
3 | 504215637 | OIL LINE |
4 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
5 | 504213767 | RETAINER |
6 | 16691424 | HEXAGON BOLT M8X65 |
7 | 16666716 | WASHER |
8 | 99453771 | RETAINER |
9 | 16673635 | HEXAGON BOLT M8X1.25X20 |
10 | 17037925 | HEXAGON NUT M8X1,25 |
