CURSOR87TE1D.A001

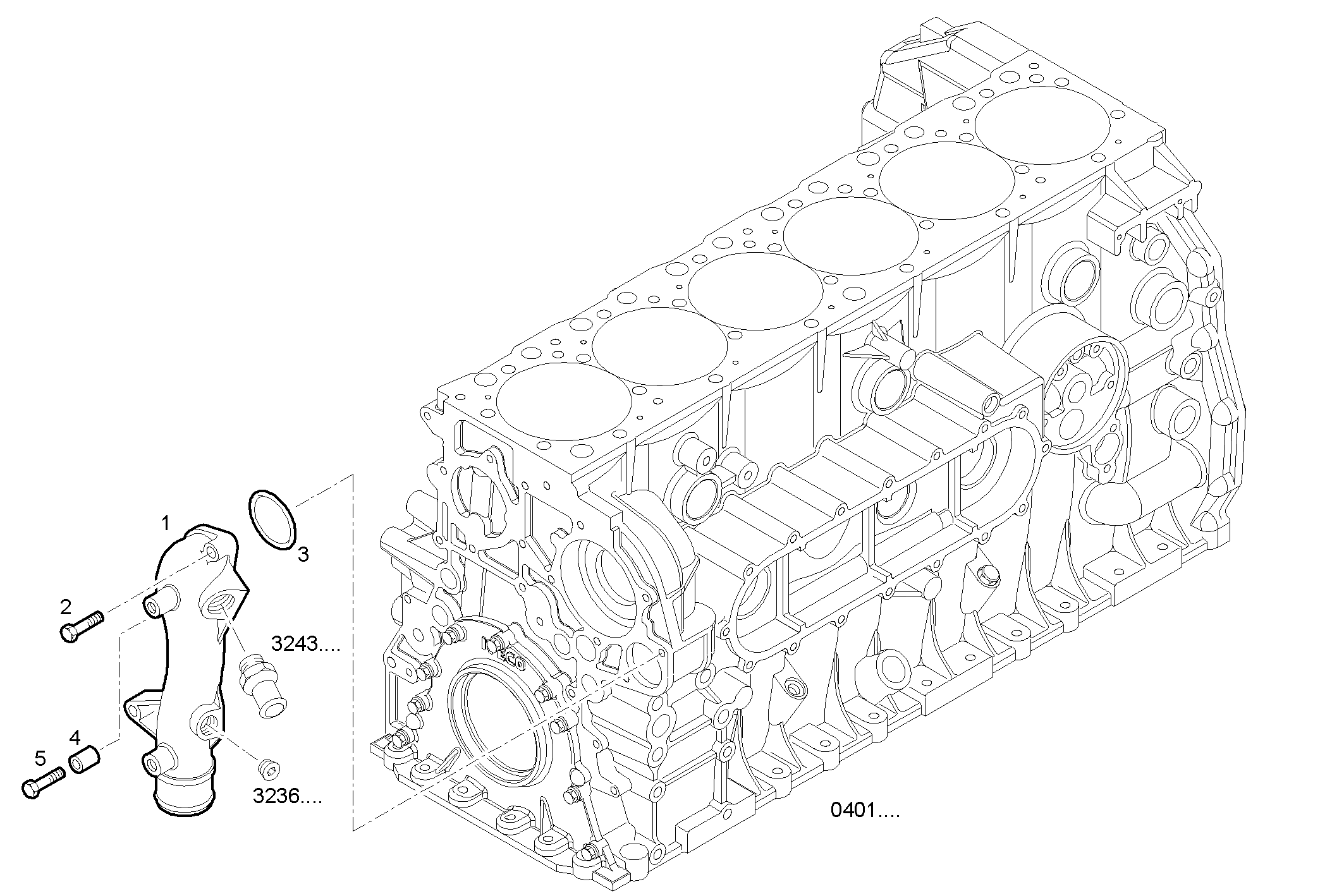

3230.032 WATER PIPE
Item | Part number | Description |
---|---|---|
1 | 504210061 | WATER PIPE |
2 | 16586925 | HEXAGON BOLT M8X50 MM |
3 | 17290081 | O-RING Ø56,74 MM SP=3,53 MM |
4 | 504253853 | SPACING BAR |
5 | 16592525 | HEXAGON BOLT M8X70 MM |
