CURSOR87TE1D.A001

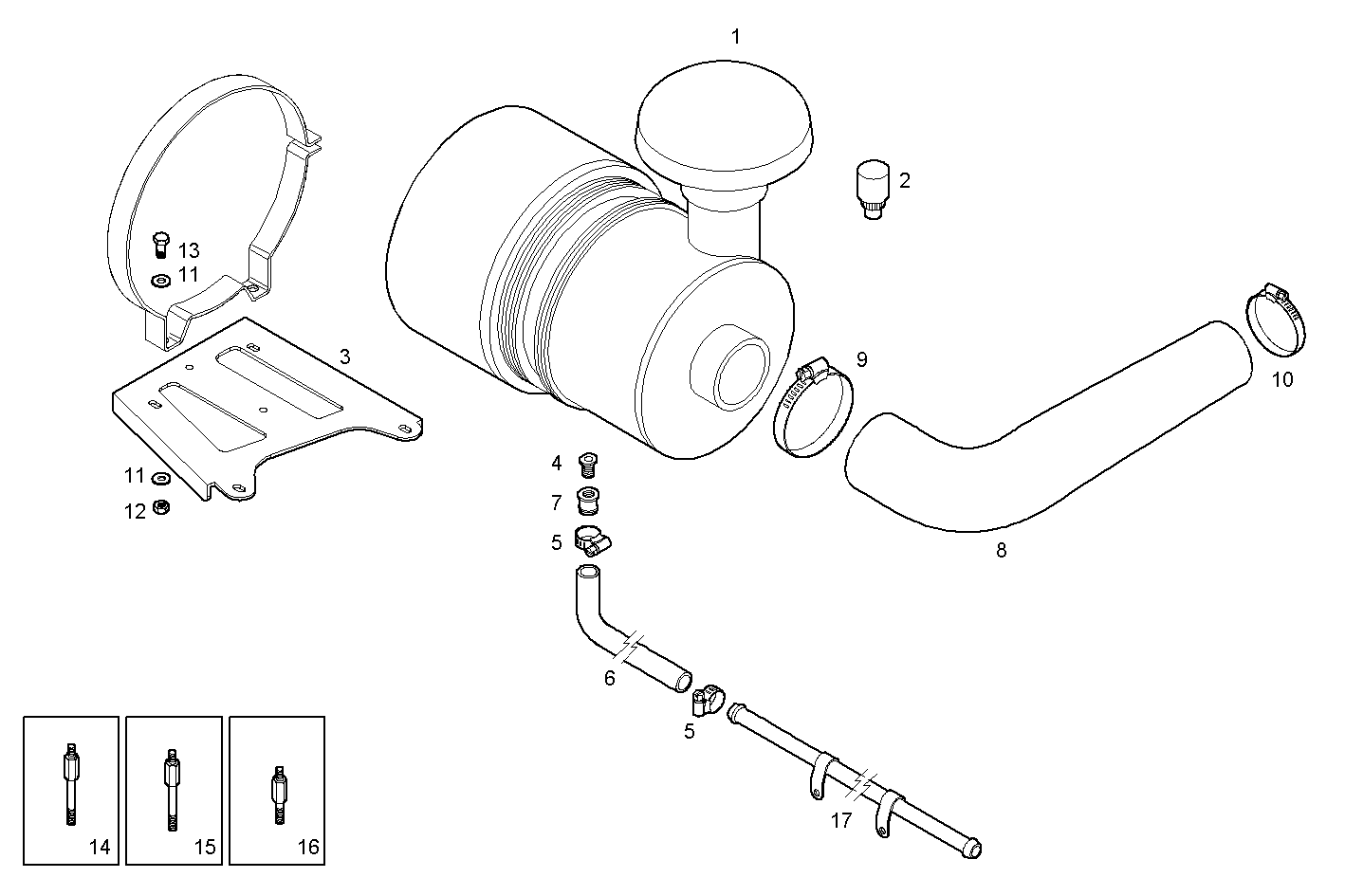

A21220504 AIR CLEANER

Iveco/FPT AIR CLEANER

Item Part number Description
1 8041166 AIR CLEANER ASSY
2 8027294 CHOCKED FILTER INDIC. MECHANICAL
3 8044683 FILTER SUPPORT
4 8015315 PIPE SOCKET
5 17764594 HOSE CLIP
6 8044962 RUBBER SLEEVE
7 8015133 PIPE SOCKET
8 8045050 FILTER HOSE
9 17765791 CLIP DIA 130/150 [up to 10-93]
10 17765494 CLIP dia. = 100/120
11 17090174 SPRING WASHER Ø10X20 MM
12 17038131 HEXAGON NUT M10
13 16607524 HEXAGON BOLT M10X1,5X20 MM (8.8)
14 8044744 SPACING BAR
15 8046579 SPACING BAR
16 8044745 SPACING BAR
17 8044952 BREATHER PIPE
