CURSOR87TE1D.A001

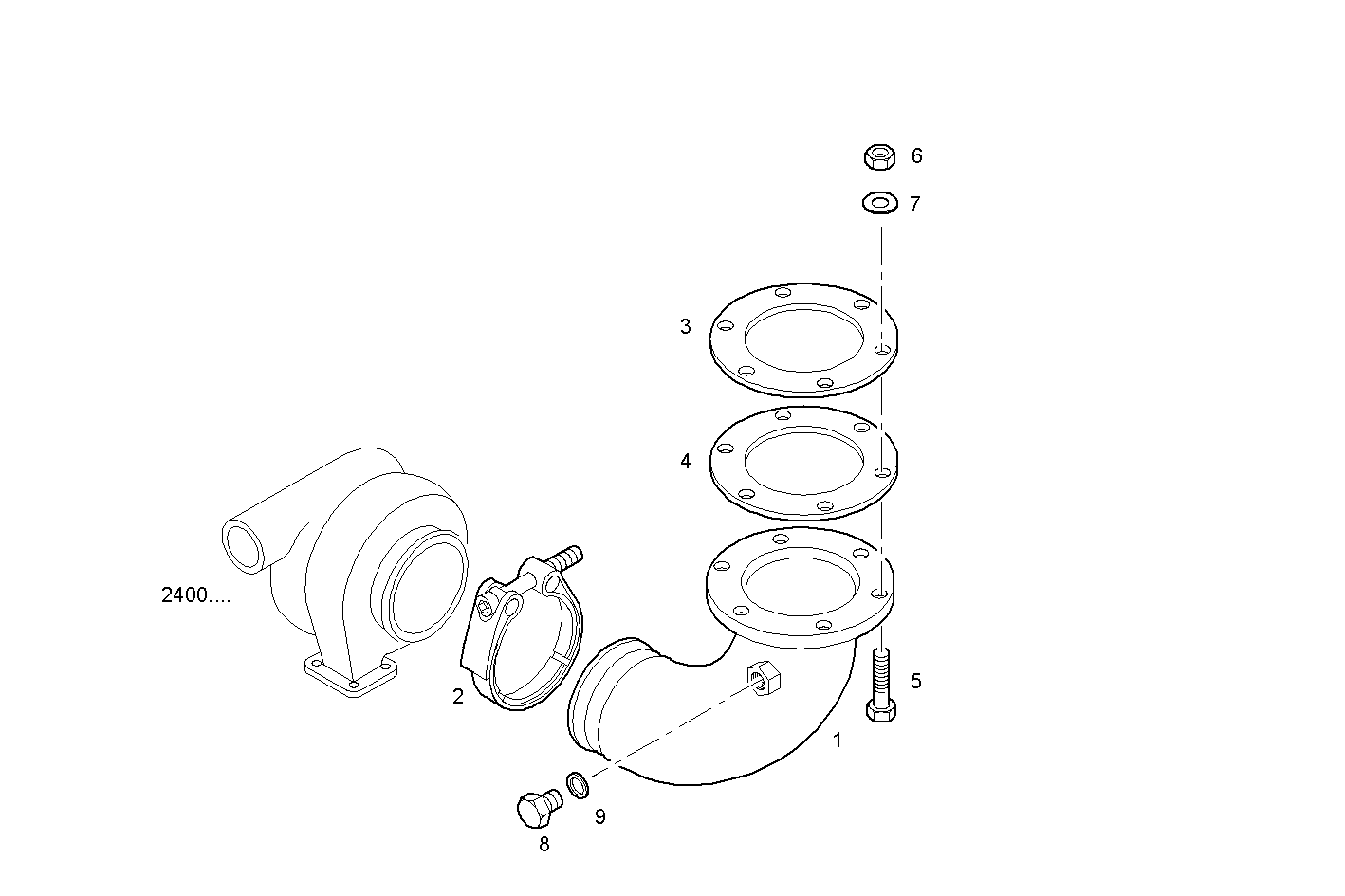

A40000508 UPWARD REAR EXHAUST ELBOW
| Item | Part number | Description |
|---|---|---|
| 1 | 8040074 | EXHAUST ELBOW |
| 2 | 8041929 | CLIP |
| 3 | 8103591 | FLANGE |
| 4 | 8009600 | GASKET |
| 5 | 16587325 | HEXAGON BOLT M10X35 MM |
| 6 | 17038131 | HEXAGON NUT M10 |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
| 8 | 16992211 | THREADED PLUG M12X1,5 |
| 9 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
