CURSOR87TE1D.A001

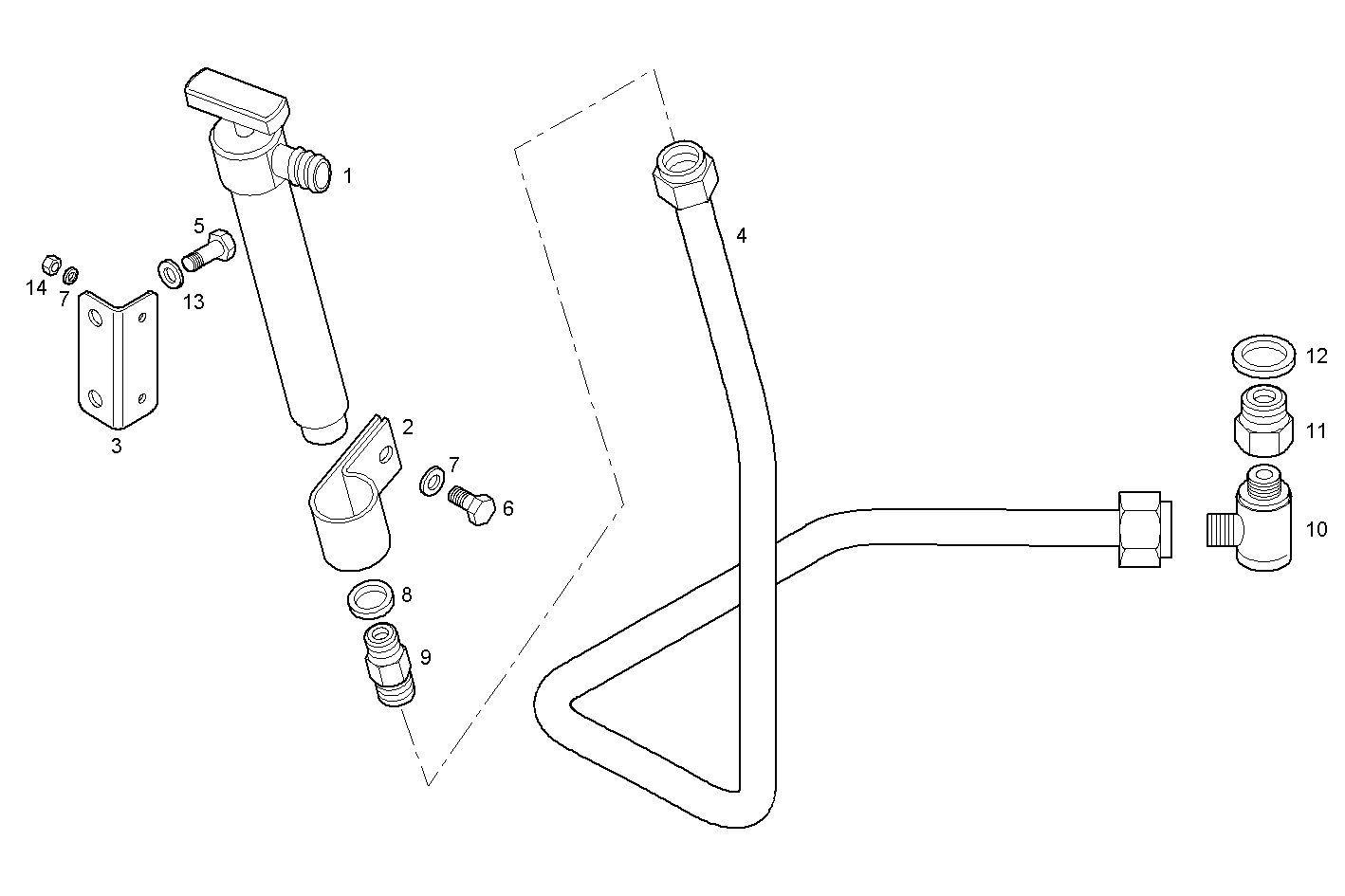

A49010508 OIL OUTLET PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8019921 | HAND PUMP |
| 2 | 4928851 | CLIP |
| 3 | 8044835 | RETAINER |
| 4 | 8044841 | OIL LINE |
| 5 | 16612025 | HEXAGON BOLT M16x20 MM |
| 6 | 16605524 | HEXAGON BOLT M8X20 MM |
| 7 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 8 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 9 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
| 10 | 8030711 | PIPE SOCKET M18X1,5/M16X1,5 |
| 11 | 4935200 | PIPE SOCKET M22X1,5/M16X1,5 |
| 12 | 99489022 | SEAL GASKET Ø22X30 MM SP=1,5 MM |
| 13 | 17092174 | SPRING WASHER Ø16X32X3,4 |
| 14 | 17039925 | HEXAGON NUT M8 |
