CURSOR87TE1D.S550

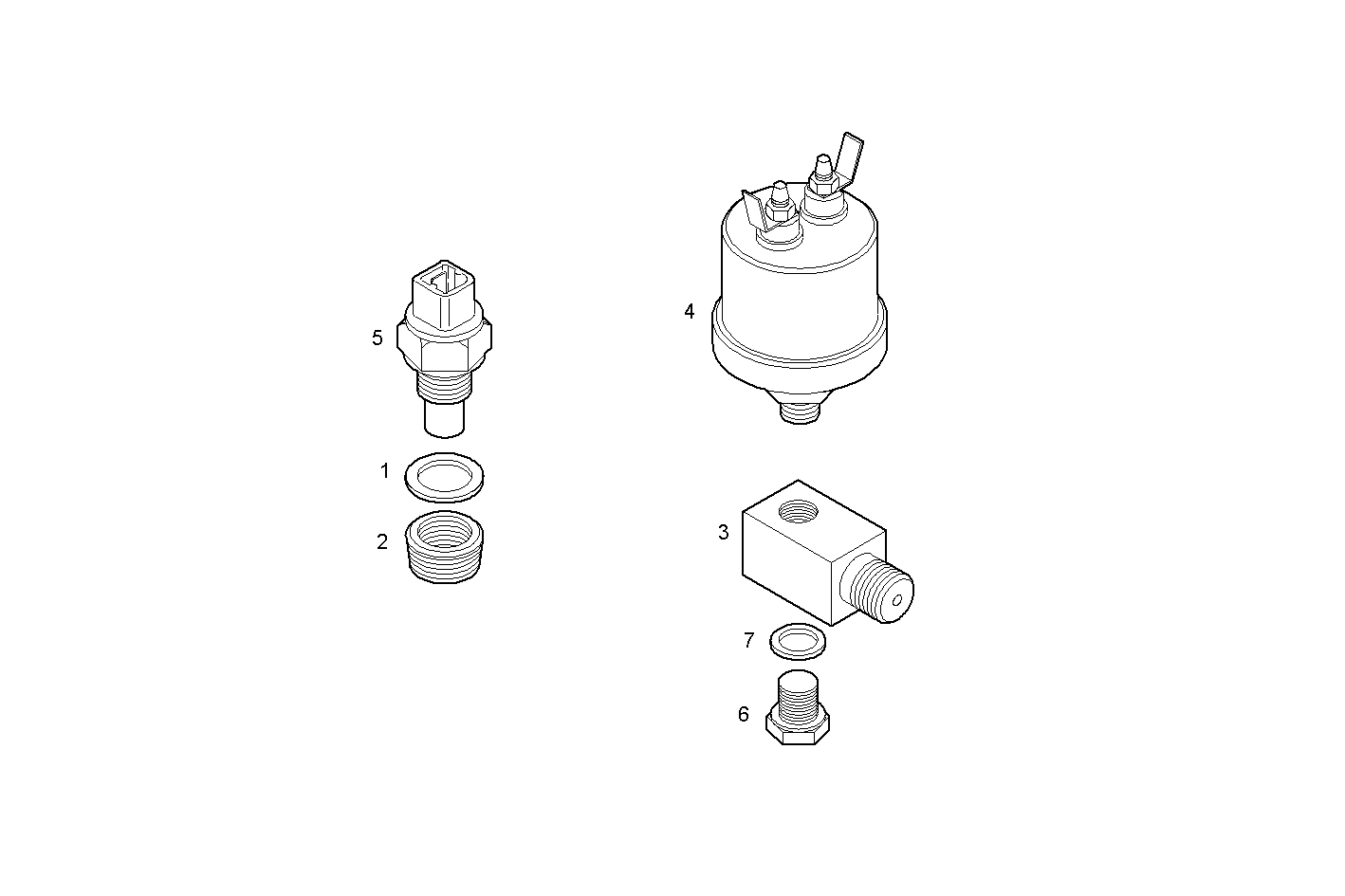

A68305005 SENDER UNITS ALARMS INSTRUMENT [FROM 02/02/09] [FROM 02/02/09]
| Item | Part number | Description |
|---|---|---|
| 1 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 2 | 4928330 | PIPE SOCKET M16X1,5/M14X1,5 |
| 3 | 8051949 | PIPE SOCKET |
| 4 | 8031697 | TRANSMITTER TBPO |
| 5 | 8108436 | TRANSMITTER IATA-TTA |
| 6 | 16992115 | THREADED PLUG M10X1 |
| 7 | 99489016 | SEAL GASKET Ø10X17 MM SP =1,5 |
