CURSOR87TE1F.S550

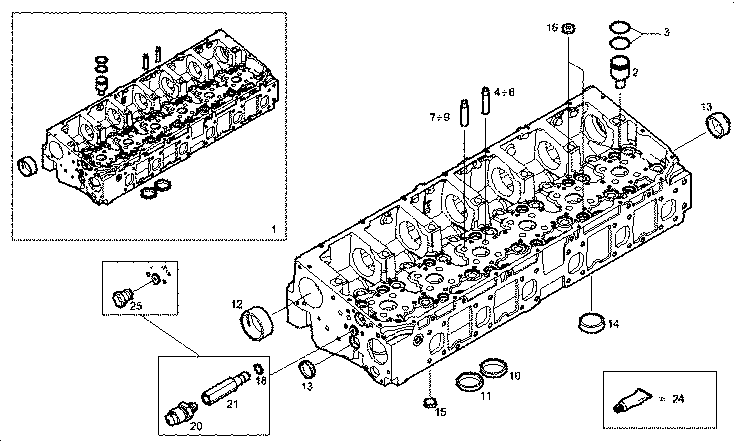

101499 CYLINDER HEAD-COVERS

Iveco/FPT CYLINDER HEAD-COVERS

Item Part number Description
1 504227730 CYLINDER HEAD
2 504127833 NOZZLE HOLDER SEAT
3 17278881 O-RING Ø23,5 MM SP=1,7 MM
4 500391436 VALVE GUIDE EXHAUST
5 500391437 VALVE GUIDE +0,2 EXHAUST
6 500391438 VALVE GUIDE +0,4 EXHAUST
7 500391440 VALVE GUIDE INTAKE
8 500391441 VALVE GUIDE +0,2 INTAKE
9 500391442 VALVE GUIDE +0,4 INTAKE
10 99447343 VALVE SEAT STD. EXHAUST
11 99456802 VALVE SEAT STD. INTAKE
12 504125778 BUSH
13 16990870 LOCK PLUG Ø28 MM
14 16991370 LOCK PLUG Ø45 MM
15 14282170 LOCK PLUG Ø20 MM
16 504344694 PLUG Ø25 MM
18 98474308 SEAL GASKET Ø14X22 MM
20 500304562 BREATHER PLUG
21 500328252 PIPE SOCKET
24 2992695 ADHESIVE/STICKER LOCTITE
25 504051237 THREADED PLUG DIAM=1/4"
