CURSOR87TE1F.S550

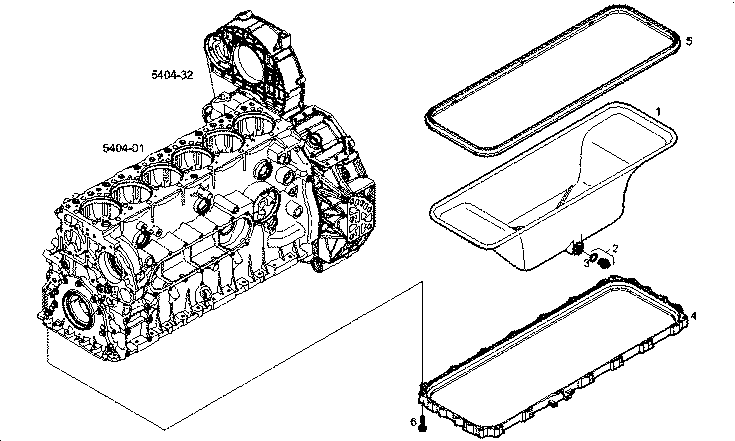

129739 ASSEMBLY-SUMP
Item | Part number | Description |
---|---|---|
1 | 5801501611 | ENGINE OIL SUMP ASSY |
2 | 504040826 | VALVE |
3 | 504040842 | SEAL GASKET |
4 | 504143828 | SPACING BAR |
5 | 504346309 | OIL SUMP GASKET |
6 | 16587525 | HEXAGON BOLT M10X45 MM |
