CURSOR87TE1F.S550

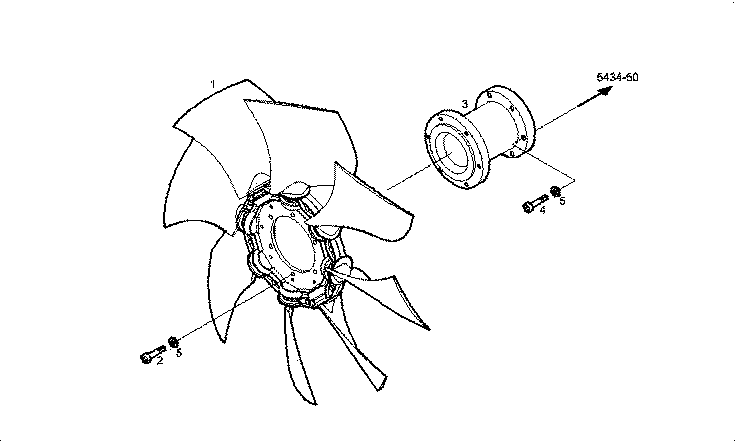

130004 FAN ASSEMBLY
| Item | Part number | Description |
|---|---|---|
| 1 | 5801545419 | FAN |
| 2 | 16690724 | CYLIND-HEAD SCREW M8X30 MM |
| 3 | 8045750 | HUB |
| 4 | 16690924 | CYLIND-HEAD SCREW M8X40 MM |
| 5 | 17096824 | WASHER Ø8,40X15 MM |
