CURSOR87TE1F.S550

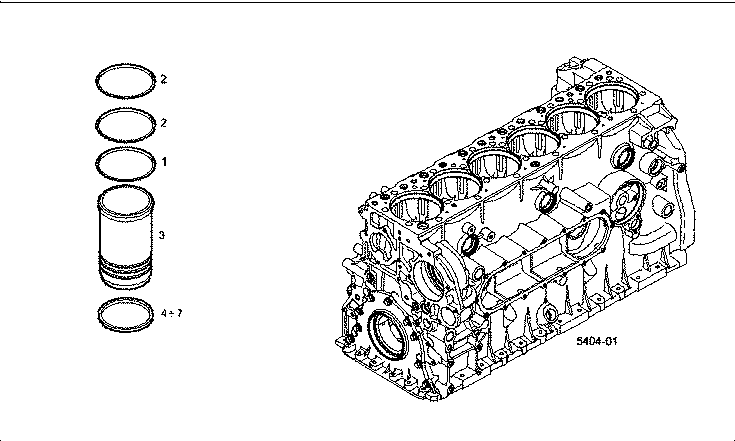

74114 CYLINDER LINE ASSEMBLY
Item | Part number | Description |
---|---|---|
1 | 99459175 | O-RING Ø120,24 MM SP=3,53 |
2 | 99459176 | O-RING Ø120,24 MM SP=3,53 |
3 | 504305869 | CYLINDER LINER |
4 | 504128648 | SPAC.RING CYL.LIN. SP=0,08 MM |
5 | 504128649 | SPAC.RING CYL.LIN. SP=0,1 MM |
6 | 504128650 | SPAC.RING CYL.LIN. SP=0,12 MM |
7 | 504128651 | SPAC.RING CYL.LIN. SP=0,14 MM |
