CURSOR87TE1F.S550

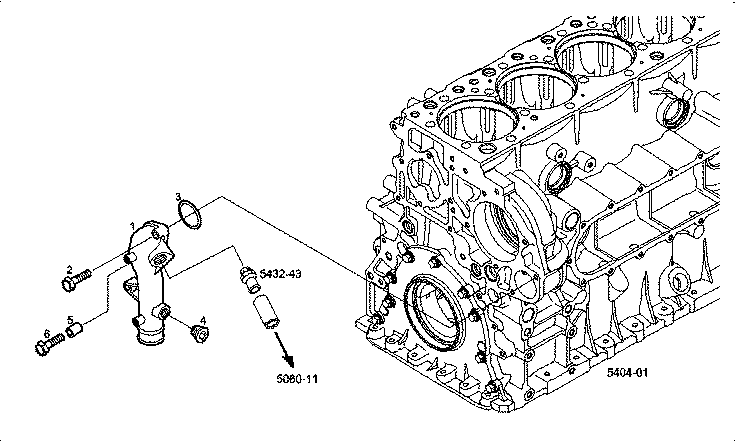

74798 WATER PIPE

Iveco/FPT WATER PIPE

Item Part number Description
1 99469567 WATER PIPE
2 16586925 HEXAGON BOLT M8X50 MM
3 17290081 O-RING Ø56,74 MM SP=3,53 MM
4 41221517 THREADED PLUG M30X1,5
5 504253853 SPACING BAR
6 16592525 HEXAGON BOLT M8X70 MM
