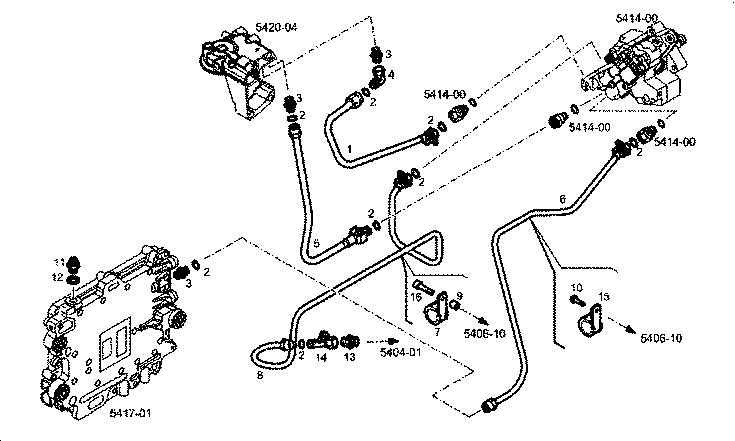

Item |
Part number |
Description |
1 |
504127214 |
FUEL LINE ASSY |
2 |
4894095 |
O-RING |
3 |
504081275 |
THREADED UNION |
4 |
16503914 |
ELBOW COUPLING M14X1,5 |
5 |
504160371 |
FUEL LINE ASSY |
6 |
504127213 |
FUEL LINE |
7 |
17316399 |
FASTENING BRACKET |
8 |
504181184 |
FUEL LINE ASSY |
9 |
8580153 |
SPACING BAR |
10 |
16597925 |
HEXAGON BOLT M8X14 MM |
11 |
504081274 |
THREADED UNION M16X1,5 - M18X1,5 |
12 |
98474309 |
WASHER Ø16X24 MM SP=1,9 MM |
13 |
41034988 |
THREADED UNION M12X1,5/M14X1,5 |
14 |
16504614 |
T-COUPLING M14X1,5 |
15 |
500391414 |
FASTENING BRACKET |
16 |
16692124 |
CYLIND-HEAD SCREW M10X25 MM (8.8) |
