F1AE0481B*A301

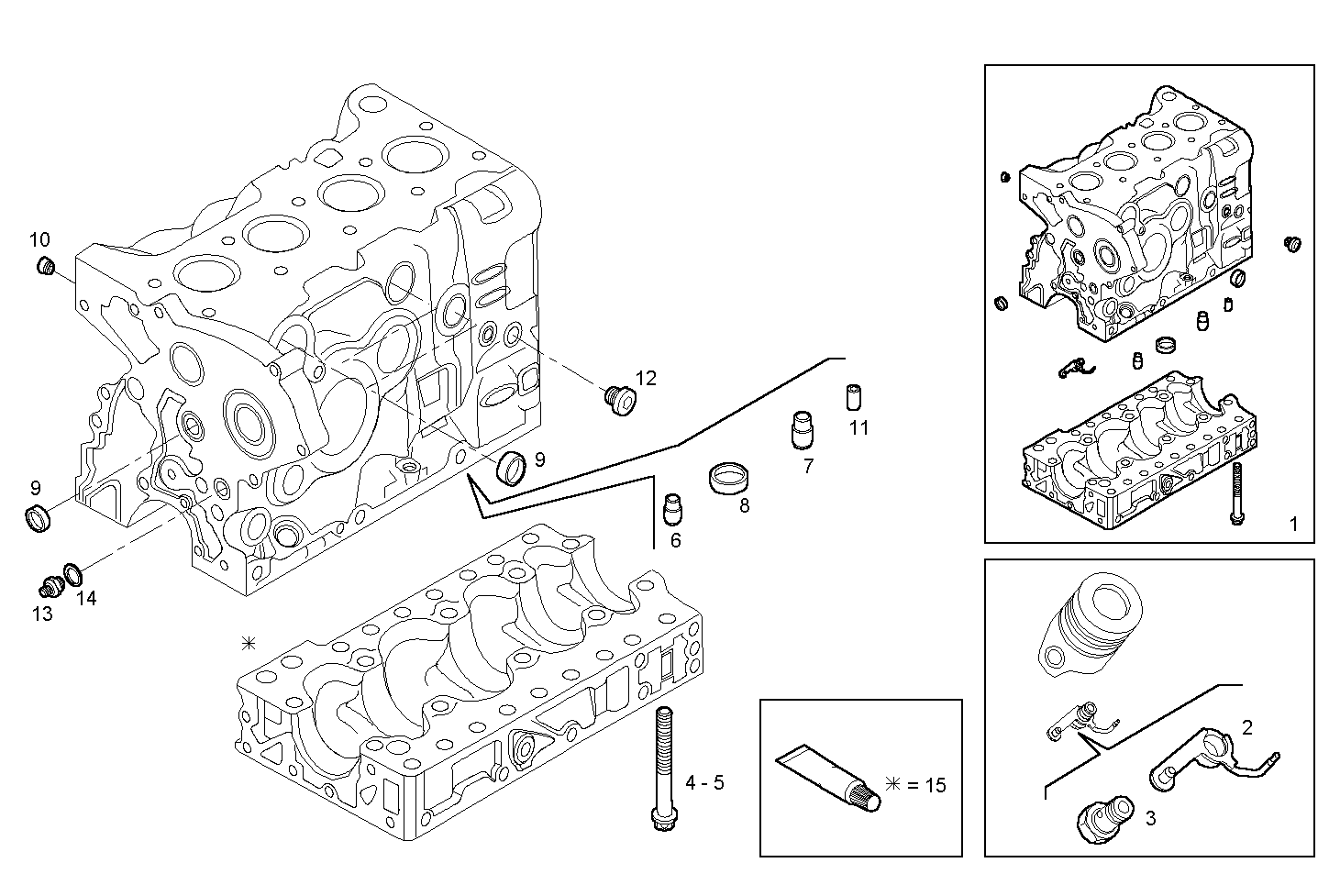

0400.162 CRANKCASE
Item | Part number | Description |
---|---|---|
1 | 504049279 | CRANKCASE ASSY |
2 | 504039888 | OIL NOZZLE |
3 | 500370623 | SCREW CONNECTOR M10X1 |
4 | 500373969 | SCREW |
5 | 504015885 | SCREW M8X1.25X80 MM |
6 | 504014642 | DOWEL PIN |
7 | 504014645 | DOWEL PIN |
8 | 16988501 | LOCK PLUG Ø25 MM |
9 | 16988601 | LOCK PLUG Ø28 MM |
10 | 504051238 | THREADED PLUG DIAM=3/8" |
11 | 99445814 | DOWEL PIN |
12 | 504016052 | LOCK PLUG M14X1,5 |
13 | 504033691 | THREADED UNION |
14 | 11270460 | GASKET Ø17X21X1,5 MM |
15 | 2992504 | ADHESIVE/STICKER LOCTITE |
