F1AE0481B*B301

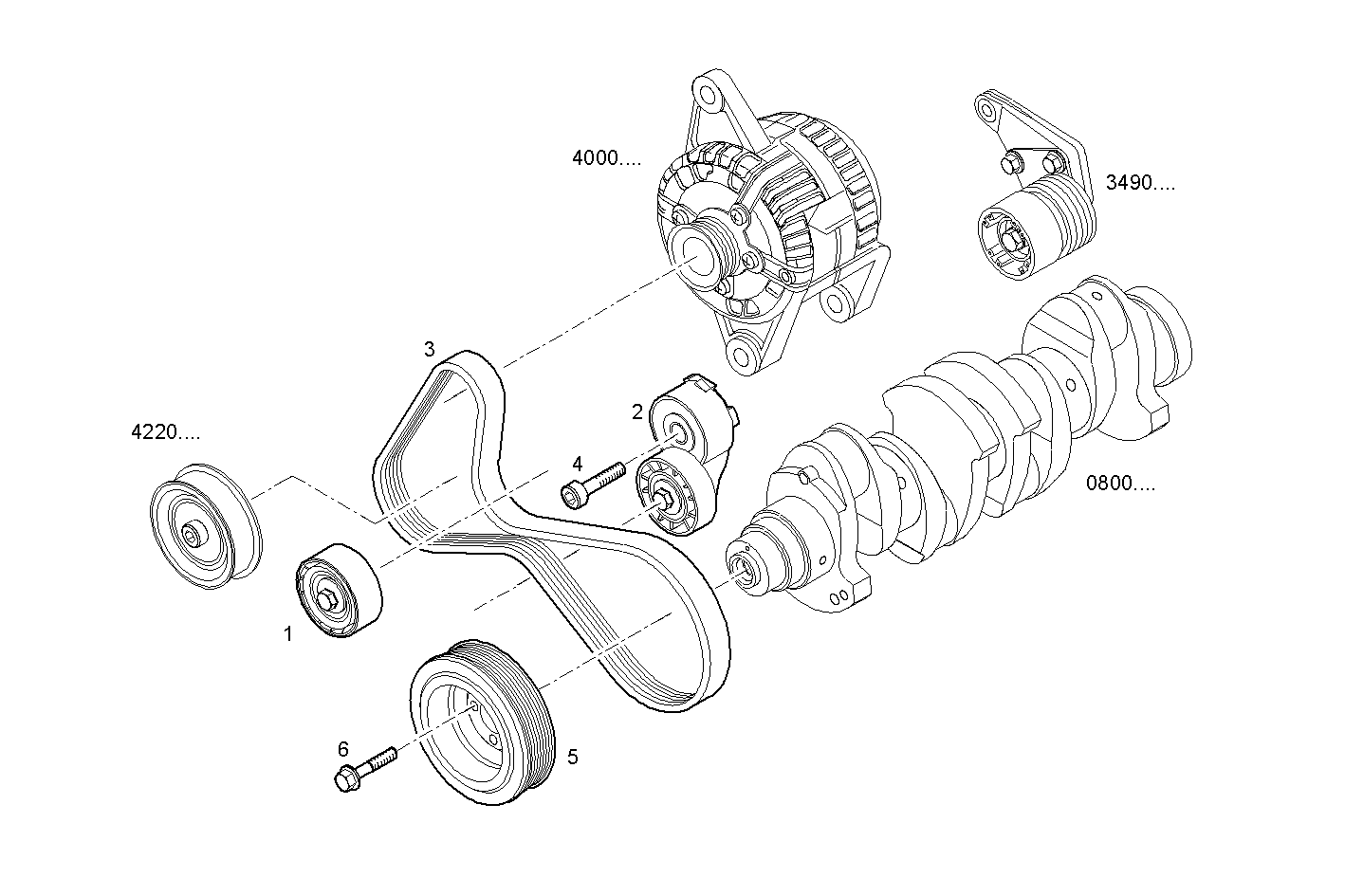

0843.011 DRIVING PULLEY
Item | Part number | Description |
---|---|---|
1 | 504000412 | DRIVE BEARING |
2 | 504000410 | BELT TENSIONER |
3 | 504000413 | V-BELT |
4 | 16691424 | HEXAGON BOLT M8X65 |
5 | 504017415 | PULLEY |
6 | 500375263 | HEXAGON BOLT M8X1,25X45 MM |
