F1AE0481B*C001

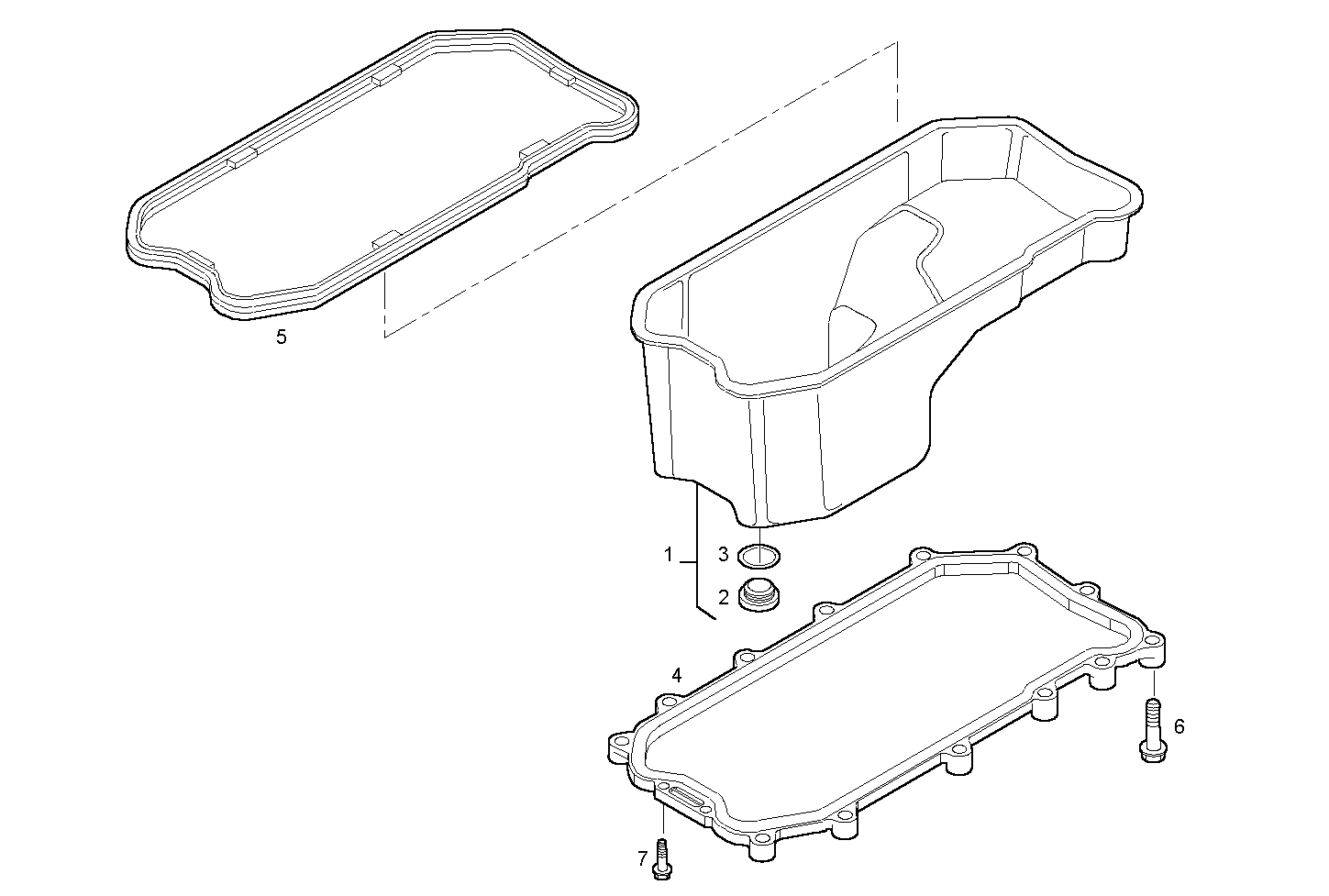

0420.248 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 504237983 | OIL SUMP ASSY |
| 2 | 16993411 | THREADED PLUG M22X1,5 |
| 3 | 16508460 | WASHER 22x27x1,5 |
| 4 | 504154880 | FRAME [FROM # 273487] |
| 5 | 504018307 | OIL SUMP GASKET [FROM # 273487] |
| 6 | 16586625 | HEXAGON BOLT M8X35 MM |
| 7 | 16586124 | HEXAGON BOLT M6X35 MM |
