F1AE0481B*C001

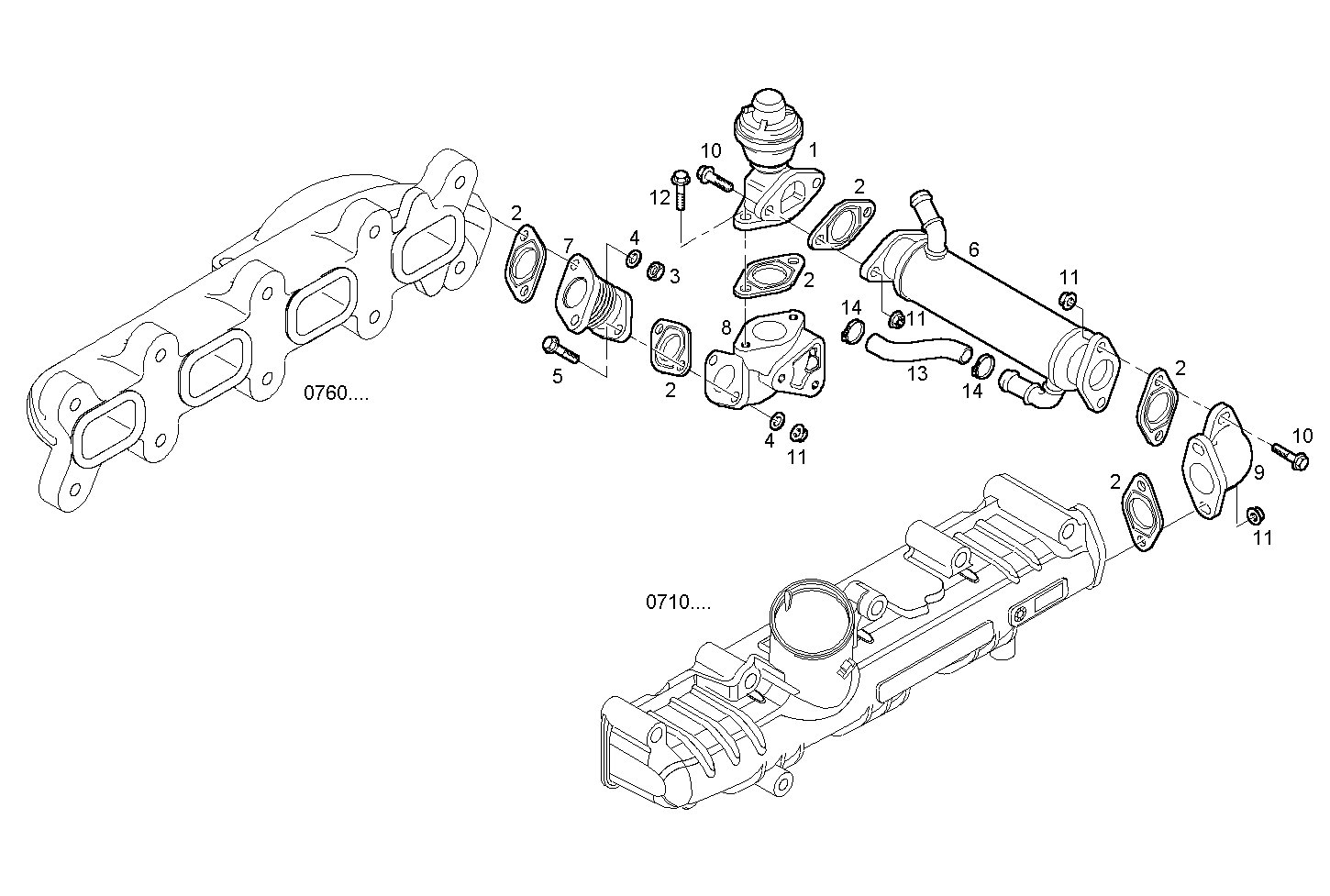

0750.000 EGR
| Item | Part number | Description |
|---|---|---|
| 1 | 504036829 | CONTROL VALVE EGR |
| 2 | 504167862 | EXH. MANIFOLD GKT |
| 3 | 500322677 | HEXAGON NUT M8 |
| 4 | 17094824 | WASHER Ø8,40X15 MM |
| 5 | 16690524 | SCREW M8X20 MM (8.8) |
| 6 | 504029418 | HEAT EXCHANGER |
| 7 | 504029416 | FLANGE |
| 8 | 504029420 | INTAKE ELBOW |
| 9 | 504034251 | INTAKE ELBOW |
| 10 | 16586524 | HEXAGON BOLT M8X30 MM |
| 11 | 17044721 | HEXAGON NUT M8X1,25 |
| 12 | 16586324 | HEXAGON BOLT M8X1,25X20 MM |
| 13 | 504053807 | RUBBER SLEEVE |
| 14 | 98463347 | CLIP Ø18,5-25 MM |
