F1AE0481B*C001

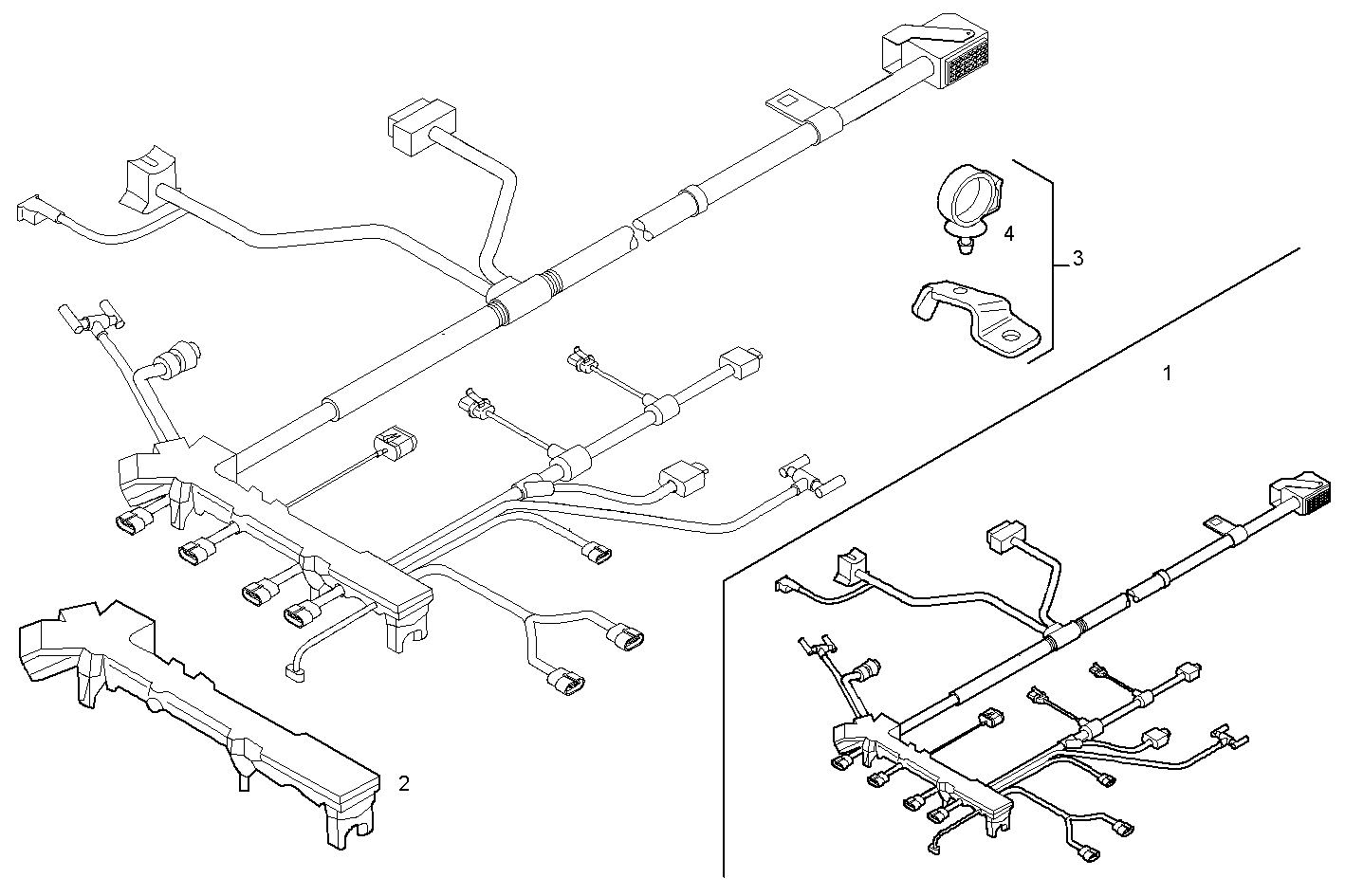

1730.043 ENGINE CABLE
Item | Part number | Description |
---|---|---|
1 | 504253961 | ENGINE HARNESS |
2 | 504124879 | EAVES |
3 | 504180174 | FASTENING BRACKET ASSY |
4 | 504037249 | SPRING CLAMP |
5 | 16673635 | HEXAGON BOLT M8X1.25X20 |
