F1AE0481F*A101

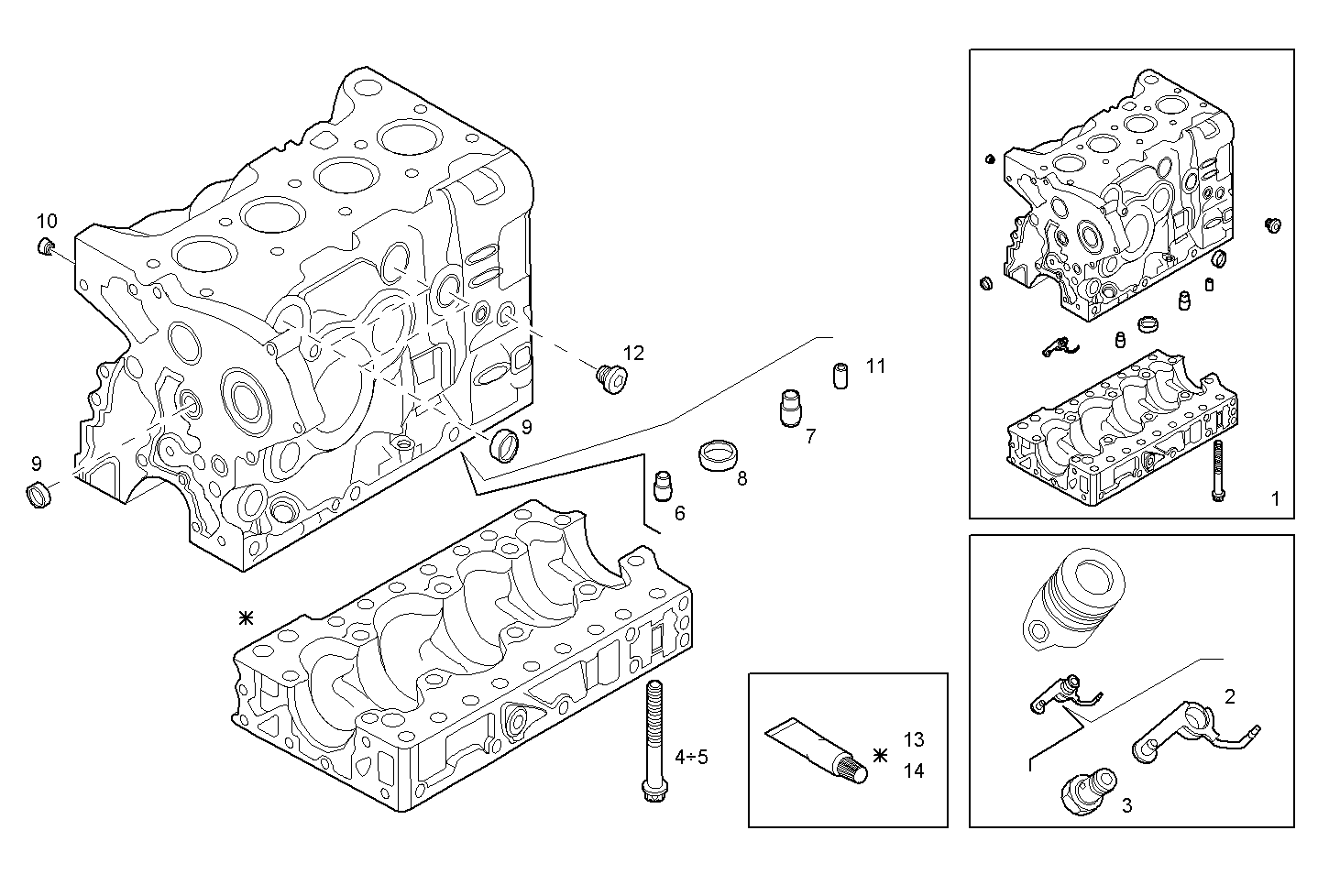

0401.014 CRANKCASE

Iveco/FPT CRANKCASE

Item Part number Description
1 504049279 CRANKCASE ASSY
2 504039888 OIL NOZZLE
3 500370623 SCREW CONNECTOR M10X1
4 500373969 SCREW
5 504015885 SCREW M8X1.25X80 MM
6 504014642 DOWEL PIN
7 504014645 DOWEL PIN
8 16988501 LOCK PLUG Ø25 MM
9 16988601 LOCK PLUG Ø28 MM
10 504051238 THREADED PLUG DIAM=3/8"
11 99445814 DOWEL PIN
12 504016052 LOCK PLUG M14X1,5
13 2992504 ADHESIVE/STICKER LOCTITE
14 2992695 ADHESIVE/STICKER LOCTITE
