F1AE0481F*A101

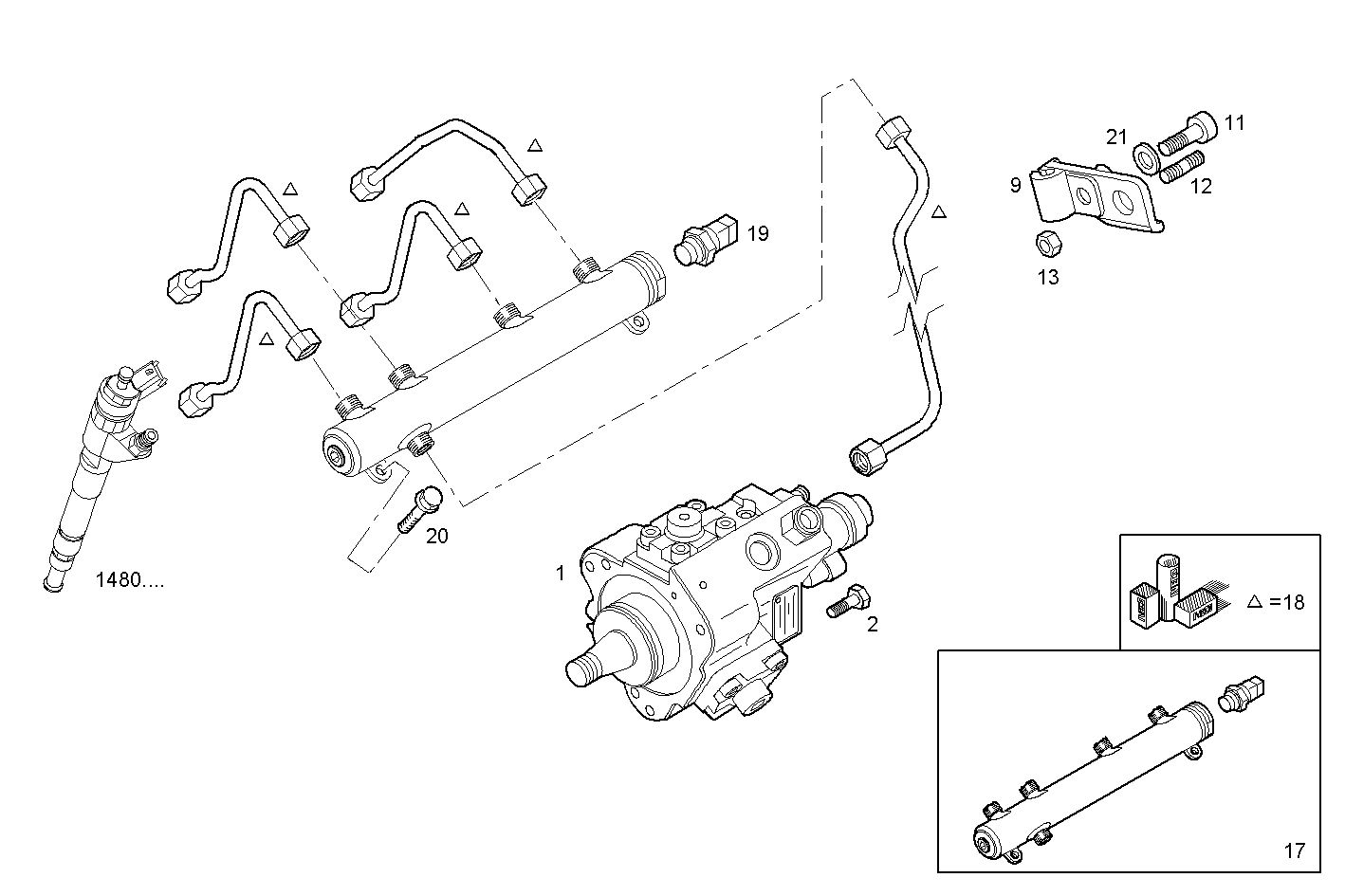

1400.439 INJECTION

Iveco/FPT INJECTION

Item Part number Description
1 504245256 HIGH PRESSURE PUMP ASSY
2 16673635 HEXAGON BOLT M8X1.25X20
9 504037035 RETAINER
11 16689134 SOCKET-HEAD SCREW M6X16 MM
12 16729324 STUD M8X12X20 MM
13 17044725 HEXAGON NUT M8
17 504128917 HYDRAULIC CYLINDER
18 504097481 INJECTION LINE SET
19 504247741 SENSOR
20 16673735 HEXAGON BOLT M8X25 MM
21 17088474 WASHER Ø6X12 MM
