F1AE0481F*A101

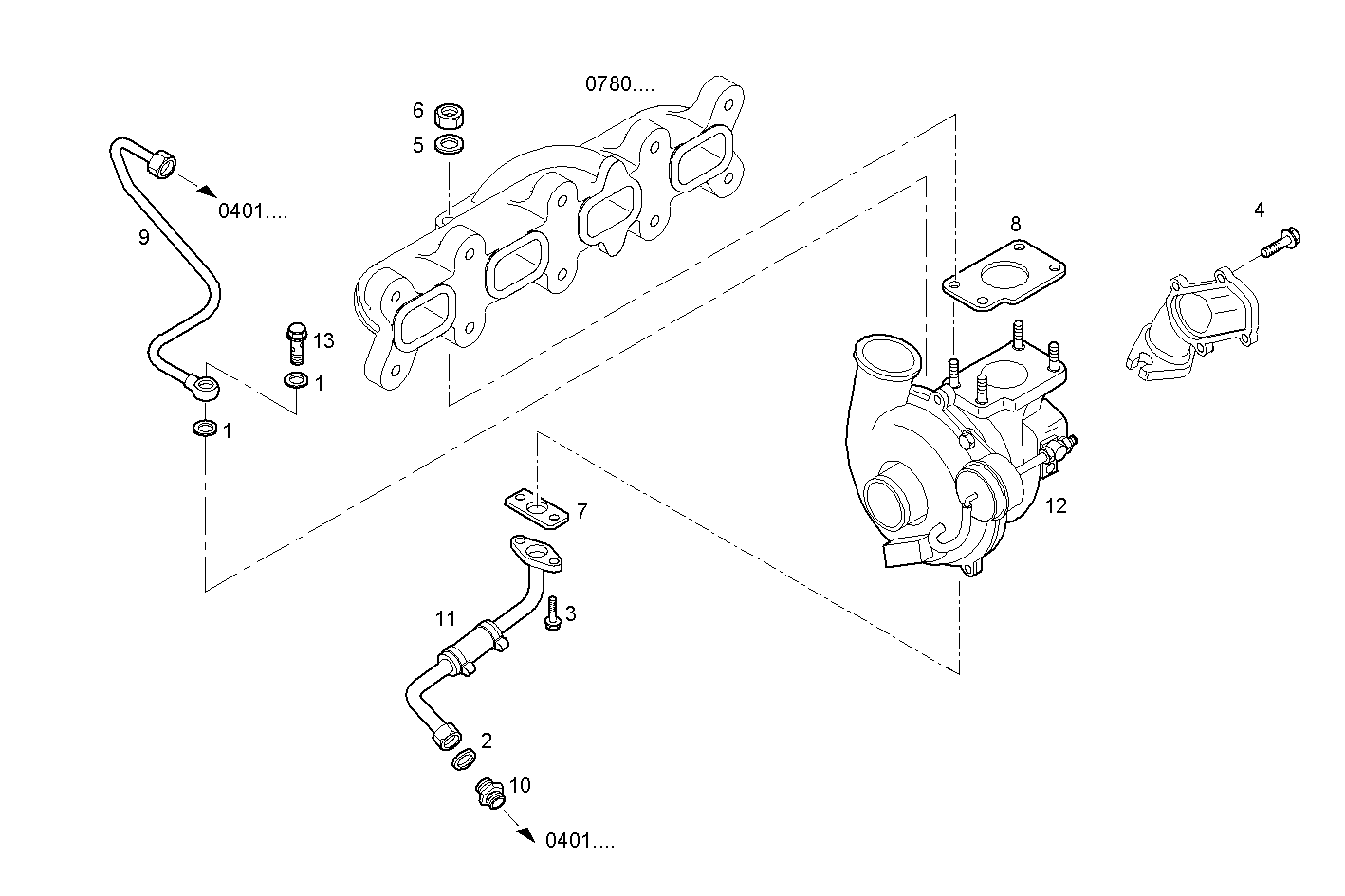

2400.321 TURBOCHARGER
| Item | Part number | Description |
|---|---|---|
| 1 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 2 | 11270460 | GASKET Ø17X21X1,5 MM |
| 3 | 16585870 | HEXAGON BOLT M6X20 |
| 4 | 16673735 | HEXAGON BOLT M8X25 MM |
| 5 | 17094914 | WASHER 8x16 |
| 6 | 500322677 | HEXAGON NUT M8 |
| 7 | 500370706 | FLAT ENGINE GASKET |
| 8 | 500378462 | EXH. MANIFOLD GKT |
| 9 | 504044738 | OIL LINE |
| 10 | 504102023 | SCREW CONNECTOR |
| 11 | 504106695 | OIL LINE |
| 12 | 504340181 | TURBOCHARGER |
| 13 | 504266554 | BANJO BOLT M12X1.5 |
