F1AE0481F*A101

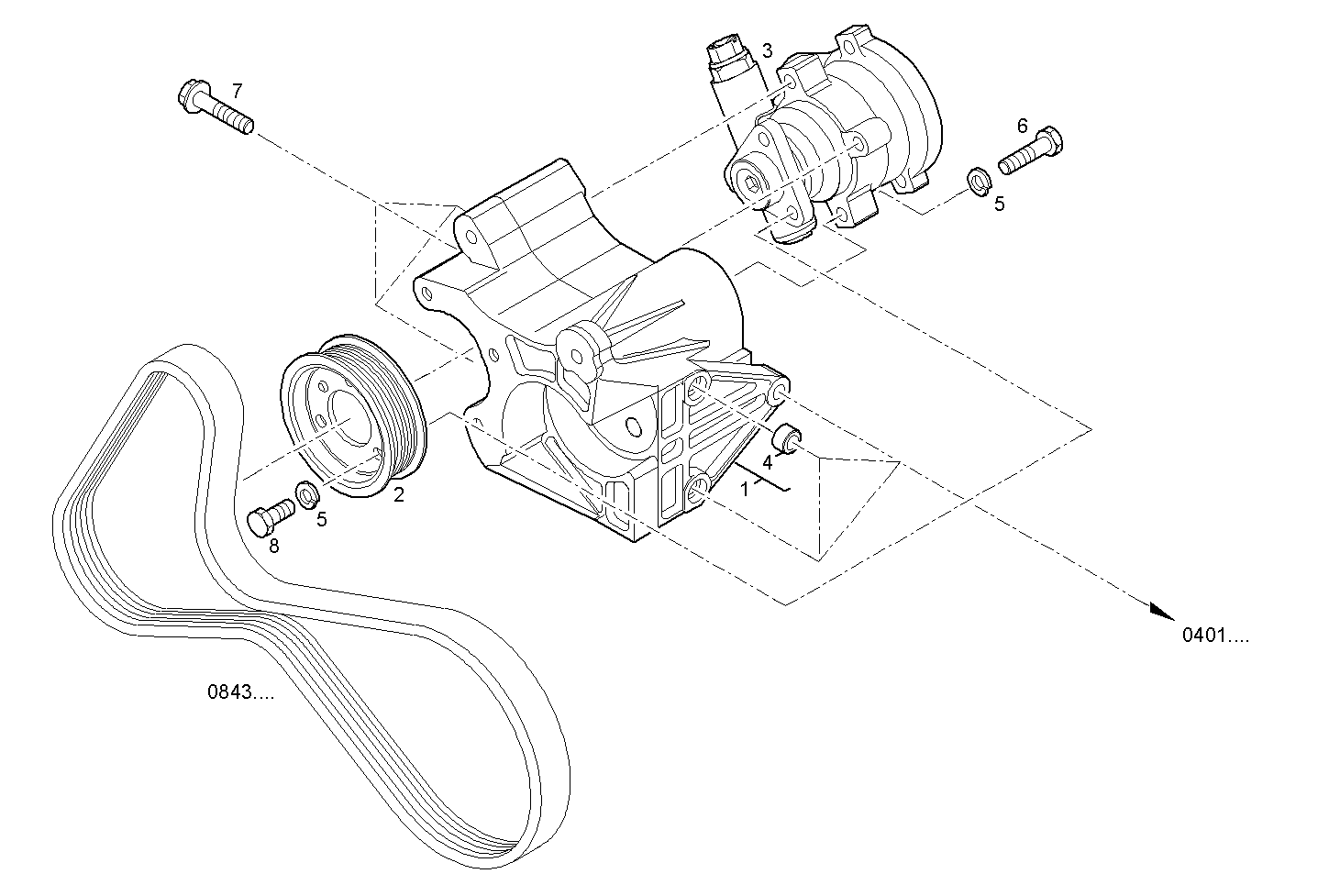

4220.032 POWER STEERING PUMP
Item | Part number | Description |
---|---|---|
1 | 504136566 | SUPPORT |
2 | 504134963 | PULLEY |
3 | 504134868 | OIL PUMP-STEERING |
4 | 500371139 | DOWEL PIN |
5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
6 | 16605734 | HEXAGON BOLT M8X30 MM |
7 | 16586725 | HEXAGON BOLT M8X1.25X40 MM |
8 | 16043124 | SCREW M8X14 MM |
