F1AE0481L*A001

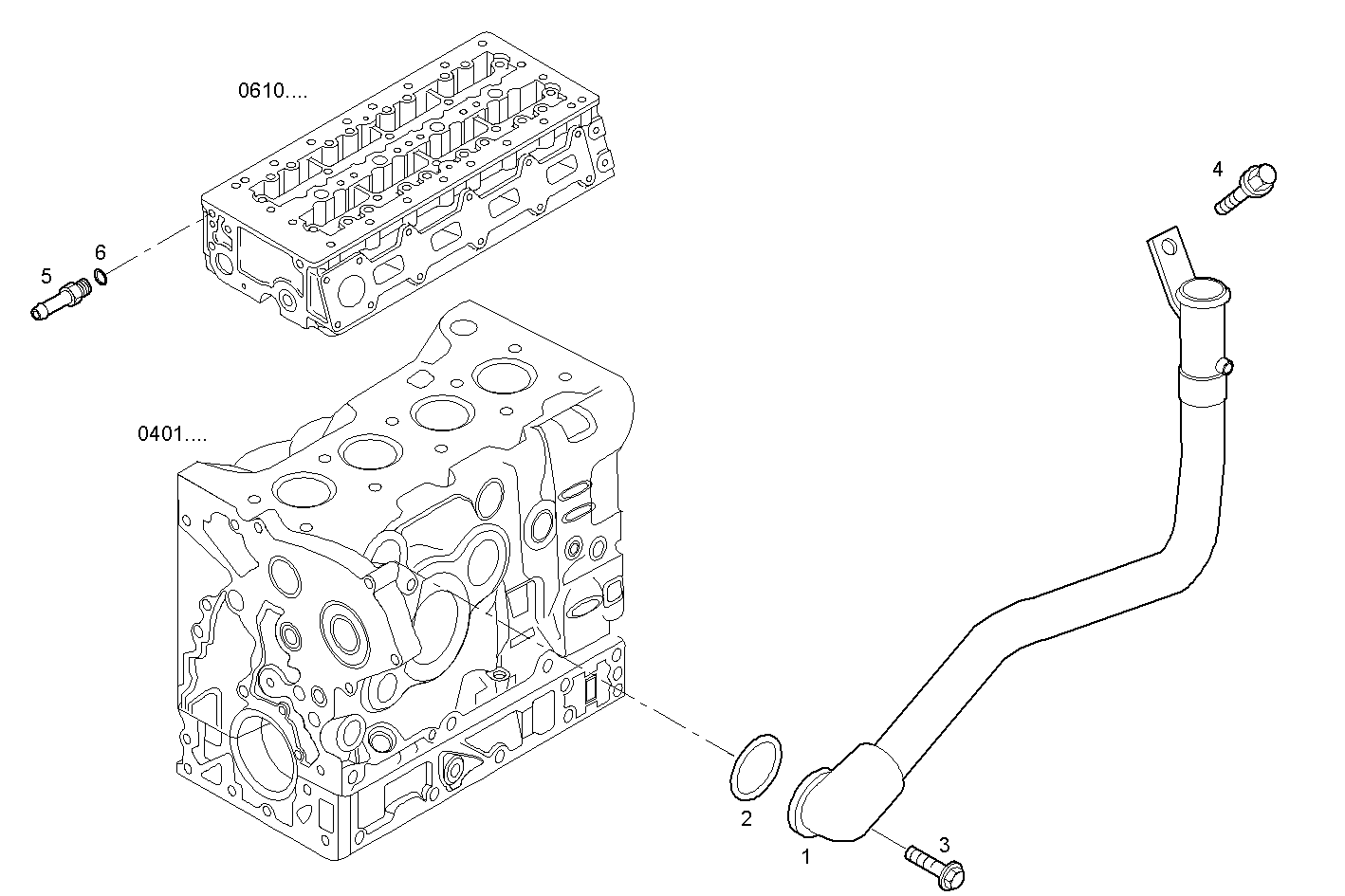

3240.197 DELIV. HEATING PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 504159262 | WATER PIPE |
| 2 | 17288480 | O-RING 3,53x21,81 |
| 3 | 18137825 | HEXAGON BOLT M6X16 |
| 4 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 5 | 504158477 | CONNECTION PIPE [FROM # 361301] |
| 6 | 10260160 | SEAL GASKET Ø10X14 MM SP=1 MM |
| 7 | 500389975 | CONNECTION PIPE [UP TO # 361300] |
