F1CE0441A*A003

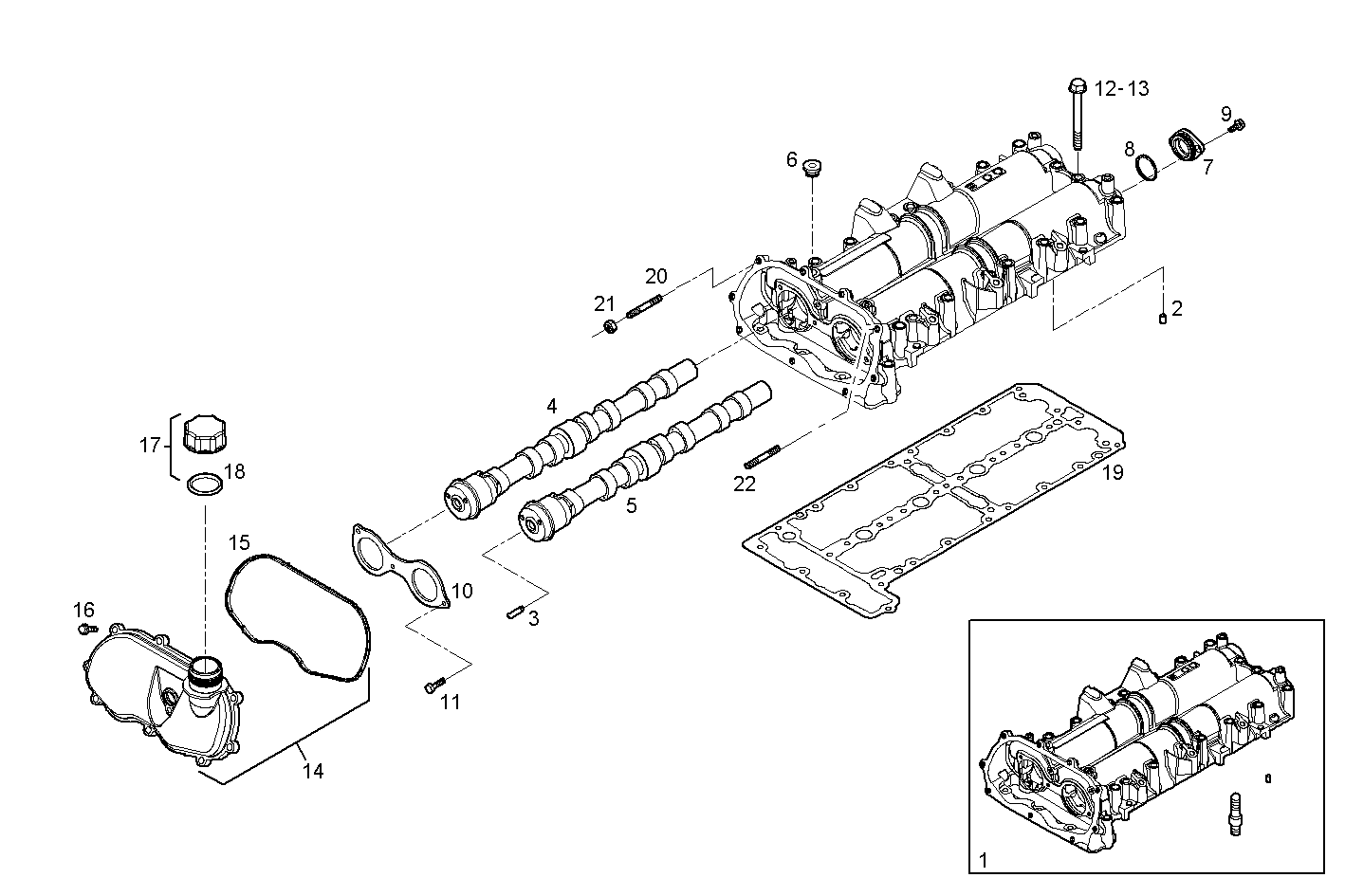

0627.002 CYL. HEAD COVERS
| Item | Part number | Description |
|---|---|---|
| 1 | 504172228 | CYL. HEAD COVER |
| 2 | 504001139 | DOWEL PIN |
| 3 | 10841510 | DOWEL PIN |
| 4 | 504080985 | CAMSHAFT EXHAUST |
| 5 | 504080984 | CAMSHAFT INTAKE |
| 6 | 504016052 | LOCK PLUG M14X1,5 |
| 7 | 504087118 | COVER |
| 8 | 17282881 | O-RING 2,62x32,99 |
| 9 | 18137825 | HEXAGON BOLT M6X16 |
| 10 | 504087120 | END PLATE |
| 11 | 16585825 | HEXAGON BOLT M6X20 MM |
| 12 | 504062448 | CYLIND-HEAD SCREW M8X1.25X40 MM |
| 13 | 16297721 | HEXAGON BOLT M8x77 |
| 14 | 504087608 | COVER ASSY |
| 15 | 504059849 | HEAD COVER GASKET |
| 16 | 16585925 | HEXAGON BOLT M6X25 MM |
| 17 | 500301568 | OIL FILLER PLUG ASSY |
| 18 | 17295480 | O-RING 5,33x37,46 |
| 19 | 504047676 | HEAD COVER GASKET |
| 20 | 16745124 | STUD M6X25 MM |
| 21 | 17044625 | HEXAGON NUT M6 |
| 22 | 16727524 | STUD M6X12 MM |
