F1CE0481B*A001

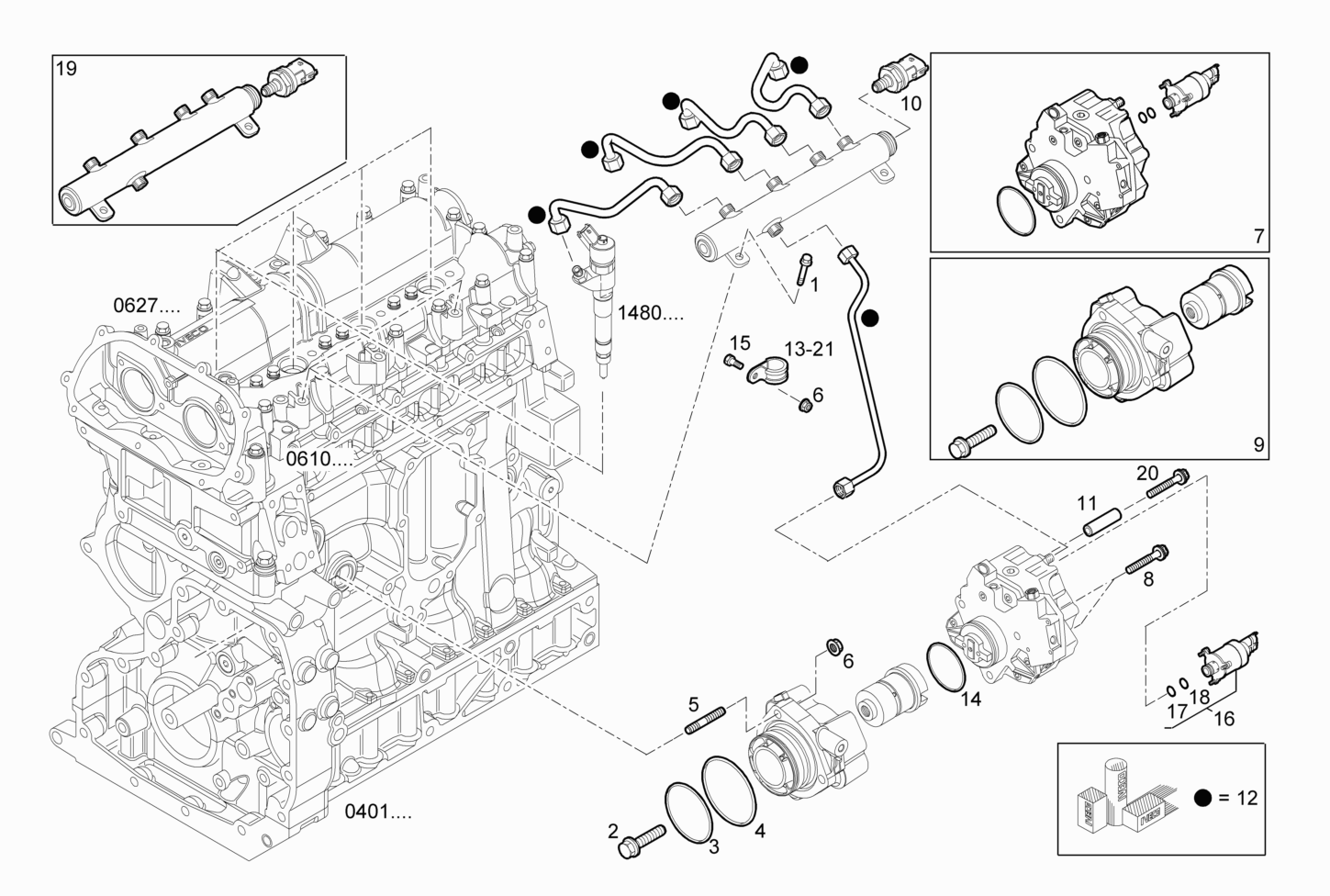

1400.479 INJECTION
| Item | Part number | Description |
|---|---|---|
| 1 | 16673735 | HEXAGON BOLT M8X25 MM |
| 2 | 500347046 | HEXAGON BOLT M12X1,25 |
| 3 | 17284781 | O-RING 2,62x63,17 |
| 4 | 17290481 | O-RING 3,53x69,44 [UP TO # 328594] |
| 5 | 504095074 | STUD M8X30 MM |
| 6 | 17044725 | HEXAGON NUT M8 |
| 7 | 504018748 | HIGH PRESSURE PUMP |
| 8 | 16674635 | HEXAGON BOLT M8X60 MM |
| 9 | 504120126 | SUPPORT |
| 10 | 504088732 | SENSOR [FROM # 109033] |
| 11 | 504104088 | SHIM |
| 12 | 504080087 | INJECTION LINE SET ASSY |
| 13 | 504054738 | RETAINER |
| 14 | 42549209 | O-RING |
| 15 | 16689134 | SOCKET-HEAD SCREW M6X16 MM |
| 16 | 42554784 | GOVERNOR/REGULATOR ASSY |
| 17 | 42541849 | O-RING |
| 18 | 42541850 | O-RING |
| 19 | 504125722 | HYDRAULIC CYLINDER |
| 20 | 16598224 | HEXAGON BOLT M8X90 MM |
| 21 | 504089520 | RETAINER |
