F1CE0481B*A001

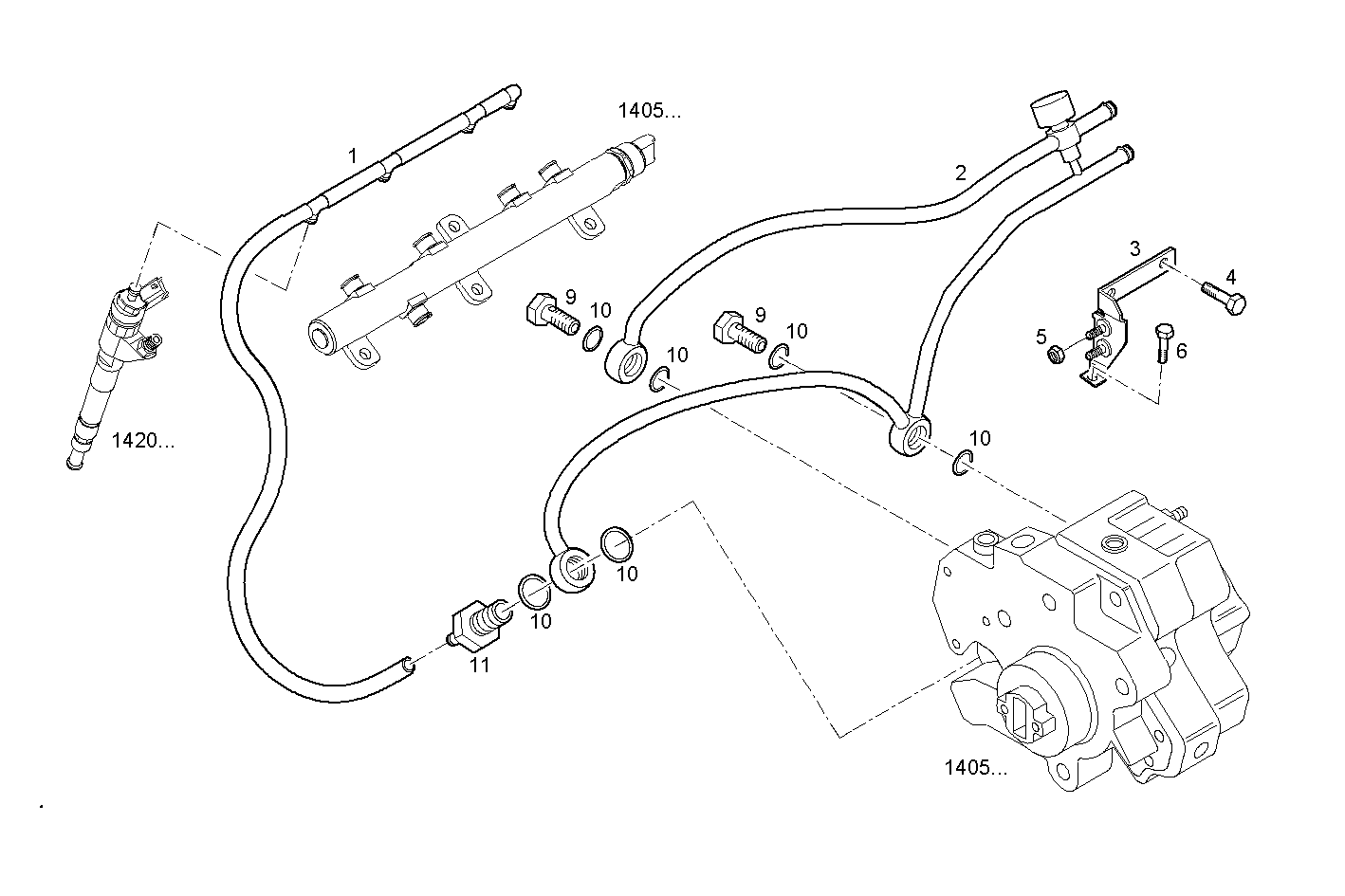

2030.290 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 504024564 | FUEL LINE |
| 2 | 504090435 | FUEL LINE |
| 3 | 504061566 | RETAINER |
| 4 | 18137825 | HEXAGON BOLT M6X16 |
| 5 | 17044625 | HEXAGON NUT M6 |
| 6 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 9 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 10 | 10298460 | SEAL GASKET Ø12X18 MM SP=1,5 MM |
| 11 | 500391535 | SCREW CONNECTOR M12X1,5 |
