F1CE0481B*A001

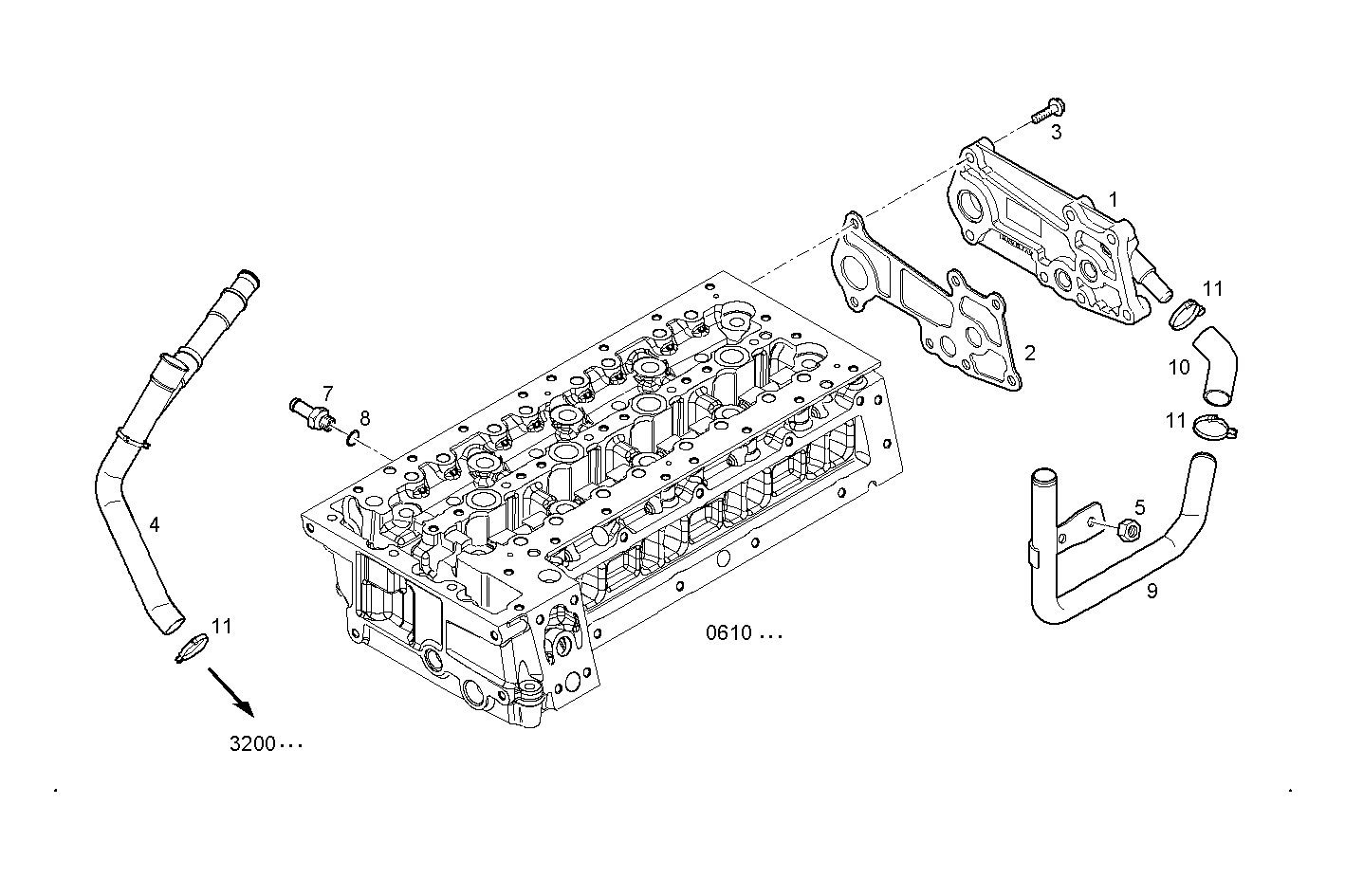

3240.209 DELIV. HEATING PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 504086910 | CYL. HEAD COVER |
| 2 | 504090818 | FLAT ENGINE GASKET |
| 3 | 16586625 | HEXAGON BOLT M8X35 MM |
| 4 | 504095970 | HEATING TUBE |
| 5 | 17044725 | HEXAGON NUT M8 |
| 7 | 500389975 | CONNECTION PIPE [UP TO # 361300] |
| 8 | 10260160 | SEAL GASKET Ø10X14 MM SP=1 MM |
| 9 | 504086913 | HEATING TUBE |
| 10 | 504096130 | RUBBER SLEEVE |
| 11 | 18088492 | CLIP M20-32 |
| 12 | 504158477 | CONNECTION PIPE [FROM # 361301] |
