F1CE0481F*A002

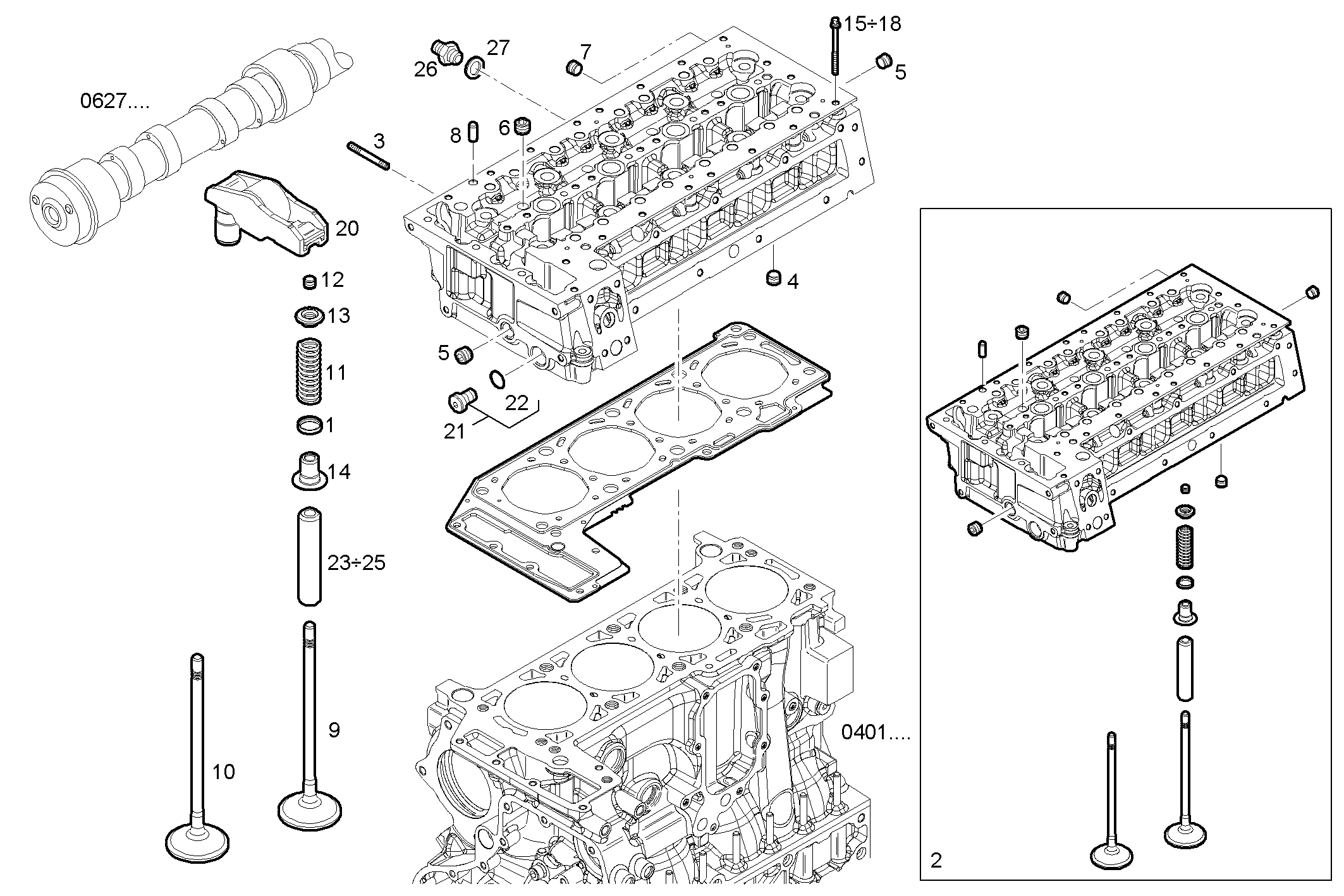

0610.003 CYLINDER HEAD
Item | Part number | Description |
---|---|---|
1 | 504075442 | VALVE SEAT STD. |
2 | 504213159 | CYLINDER HEAD ASSY |
3 | 504089121 | STUD M8X1.25 |
4 | 504113860 | THREADED PLUG DIAM=1/2" |
5 | 504051237 | THREADED PLUG DIAM=1/4" |
6 | 504051238 | THREADED PLUG DIAM=3/8" |
7 | 504051236 | THREADED PLUG DIAM=1/8" |
8 | 504087365 | DOWEL PIN |
9 | 504072531 | INLET VALVE |
10 | 504081062 | EXHAUST VALVE |
11 | 500348686 | ENGINE VALV.SPRING |
12 | 14194670 | VALVE CONE |
13 | 500348685 | SPRING CAP |
14 | 500395378 | CAP |
15 | 504081515 | CYL.HEAD STUD M15X1,5 |
16 | 504081531 | CYL.HEAD STUD M12X1.5 |
17 | 504081543 | CYL.HEAD STUD M8X1.25 |
18 | 504081546 | CYL.HEAD STUD M8X1.25 |
19 | 504093500 | CYL.HEAD GASKET SP=1,1 MM |
20 | 504074464 | ROCKER ARM |
21 | 504113994 | THREADED PLUG M14X1,5 |
22 | 99489024 | SEAL GASKET dia. 26x36x1,5 |
23 | 504053804 | VALVE GUIDE +0,05 MM |
24 | 504053805 | VALVE GUIDE +0.10 |
25 | 504053806 | VALVE GUIDE +0.25 |
26 | 504033677 | THREADED UNION DIAM=1/4" |
27 | 504077652 | WASHER |
