F1CE0481F*A002

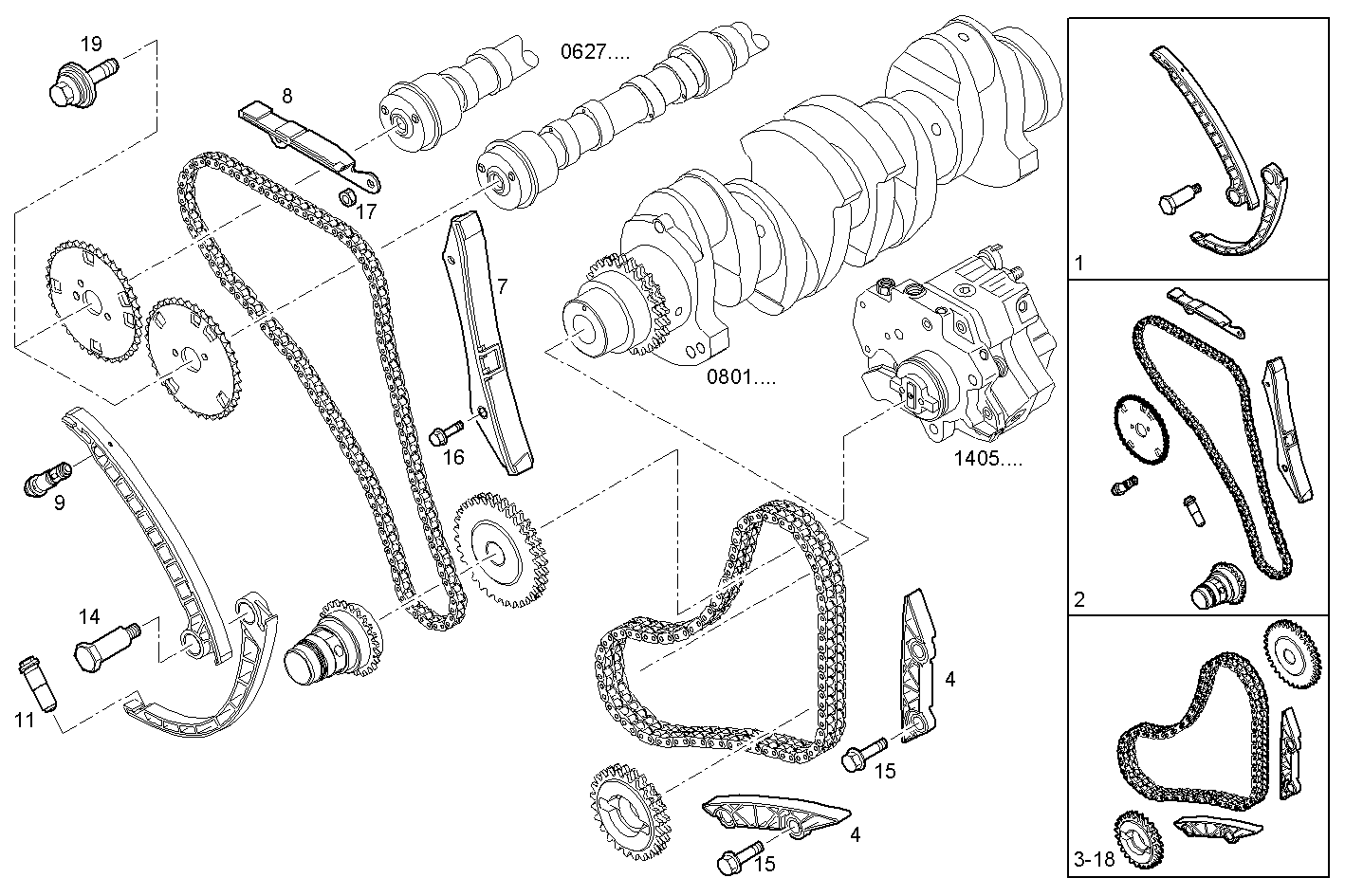

1220.002 CONTROLS

Iveco/FPT CONTROLS

Item Part number Description
1 504084528 SLIDING SHOE ASSY
2 504084527 TIMING CHAIN ASSY
3 504084526 TIMING CHAIN ASSY [UP TO # 235798]
4 504019931 SLIDING SHOE
7 504074380 SLIDING SHOE
8 504019918 SLIDING SHOE
9 504081358 TENSIONER
11 504019915 TENSIONER
14 504019914 CYLIND-HEAD SCREW M10x1.5
15 16586625 HEXAGON BOLT M8X35 MM
16 16585825 HEXAGON BOLT M6X20 MM
17 17044625 HEXAGON NUT M6
18 504161356 TIMING CHAIN [FROM # 235799]
19 504134291 CYLIND-HEAD SCREW M12X40 MM
