F1CE0481F*A003

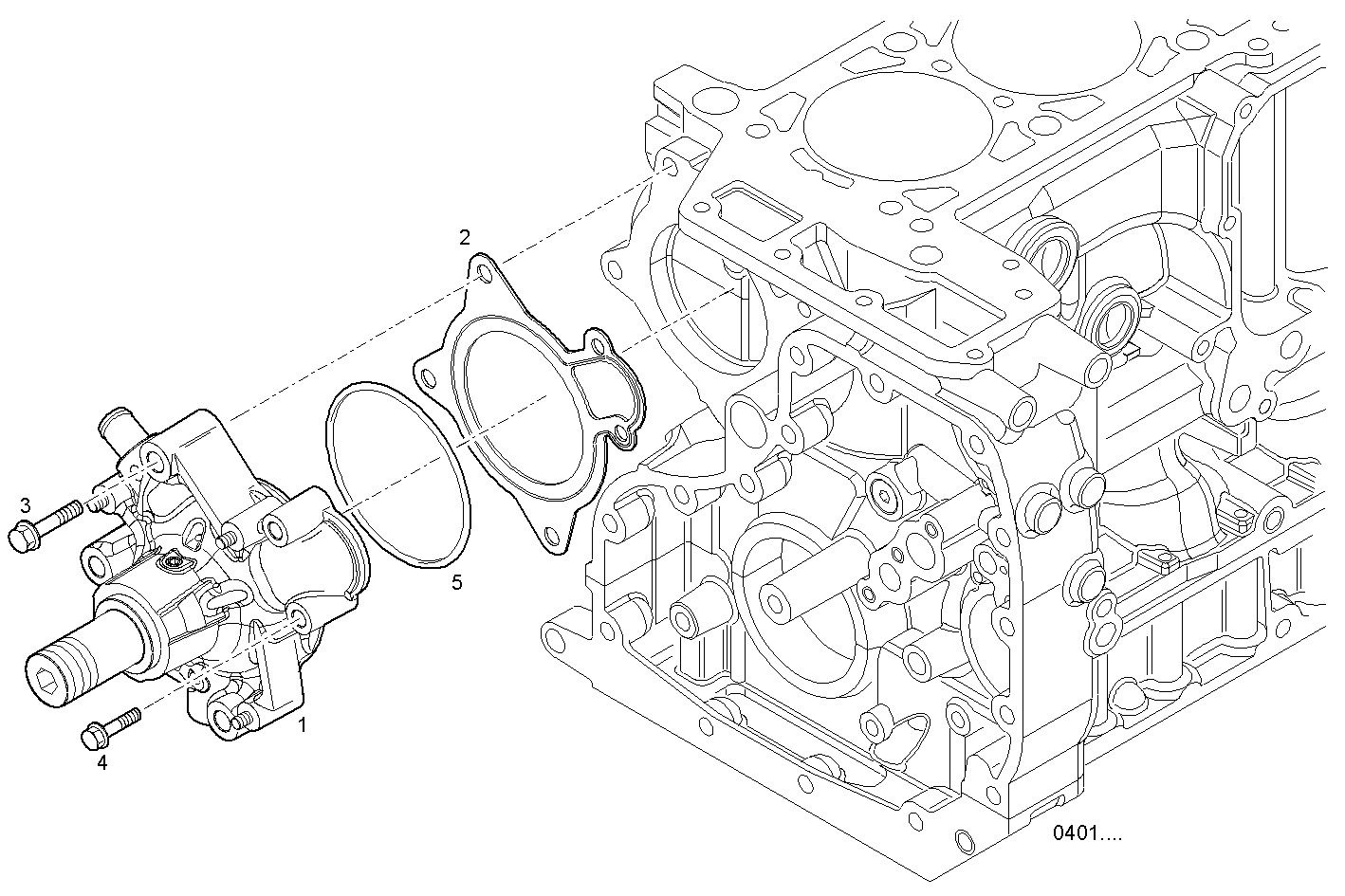

3201.023 WATER PUMP
Item | Part number | Description |
---|---|---|
1 | 504360207 | WATER PUMP |
2 | 504080013 | FLAT ENGINE GASKET |
3 | 16587724 | HEXAGON BOLT M10X55 MM |
4 | 16586825 | HEXAGON BOLT M8X1.25X45 MM |
5 | 17285681 | O-RING Ø88,57 MM SP=2,62 MM |
