F1CE0481F*C501

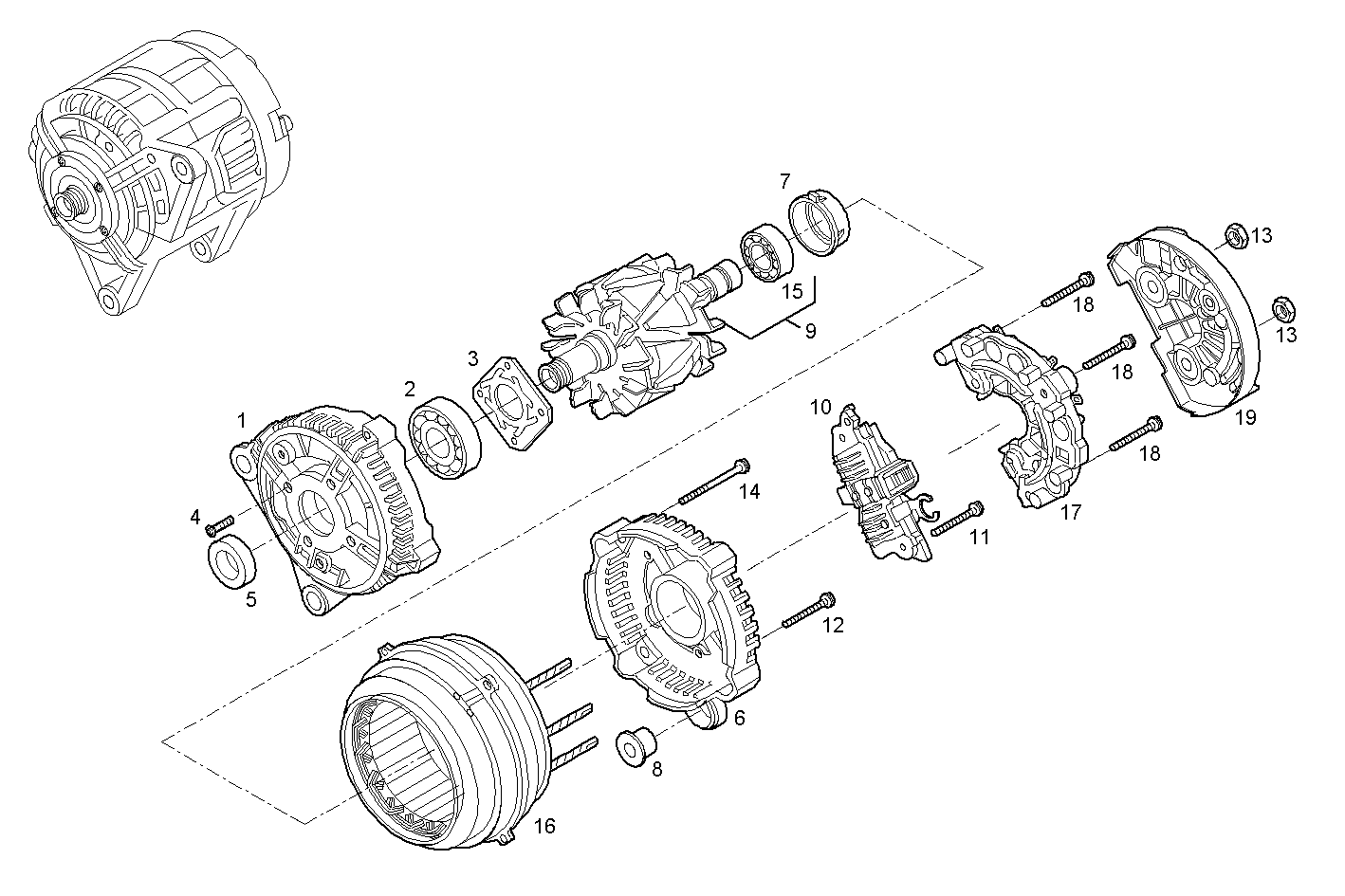

4030.010 GENERATOR (COMPONENTS)
Item |
Part number |
Description |
1 |
42533803 |
GENERATOR SUPPORT |
2 |
2991636 |
ENGINE BEARINGS |
3 |
42531218 |
PLATE |
4 |
42556816 |
C'SUNK SCREW |
5 |
42533805 |
SPACING BAR |
6 |
42561272 |
GENERATOR SUPPORT |
7 |
42471431 |
BUSH |
8 |
42471432 |
BUSH |
9 |
42533809 |
GENERATOR ROTOR |
10 |
42559751 |
VOLTAGE REGULATOR |
11 |
42559488 |
SCREW |
12 |
42559487 |
SCREW |
13 |
42556263 |
HEXAGON NUT |
14 |
42533819 |
SCREW |
15 |
2991637 |
ENGINE BEARINGS |
16 |
42557888 |
GENERATOR STATOR |
17 |
42559489 |
RECTIFIER BRIDGE |
18 |
42537878 |
SCREW |
19 |
42557889 |
GENERATOR SUPPORT |
