F1CE0481F*C503

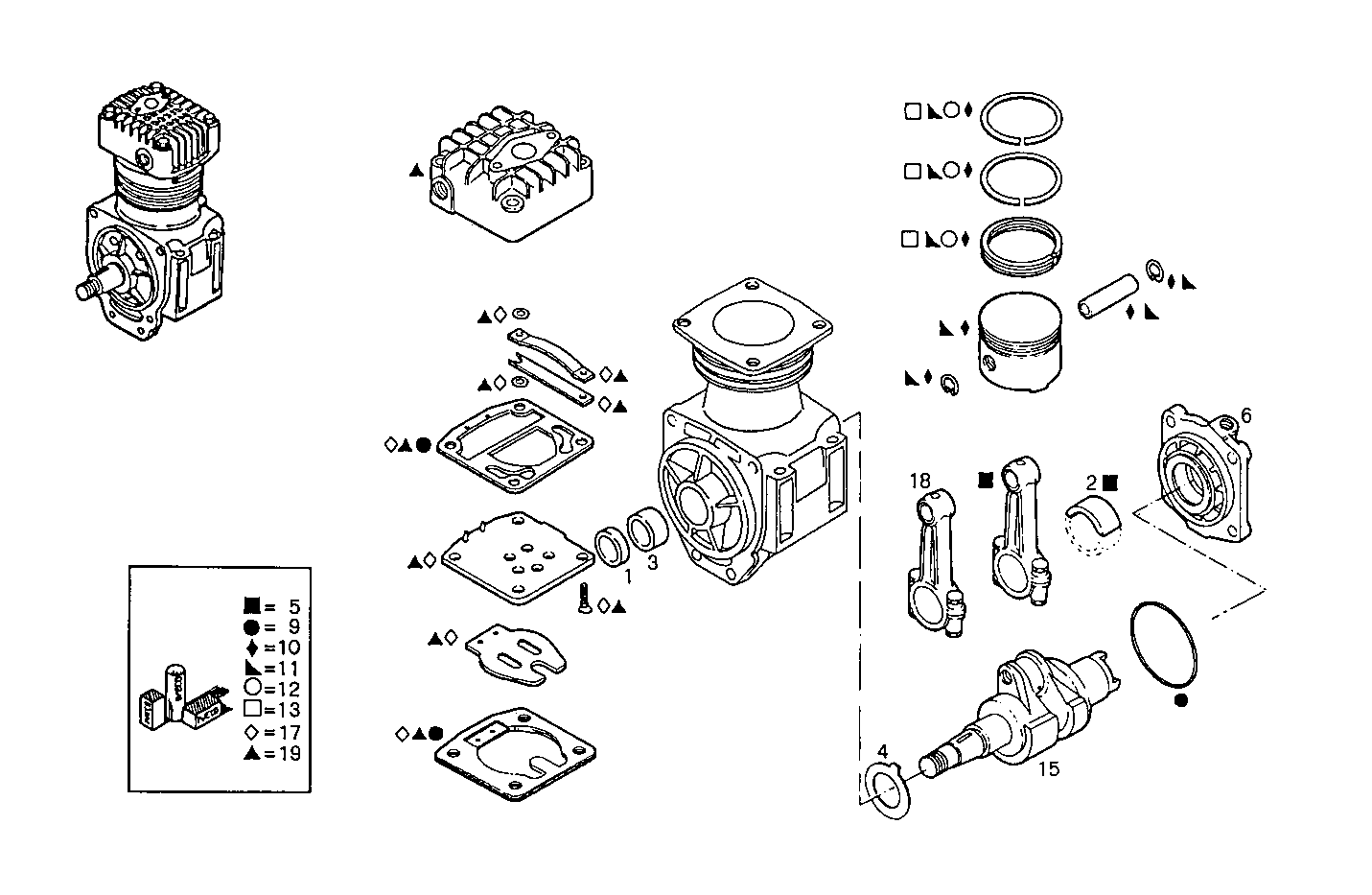

3830.001 AIR COMPRESSOR (COMPONENTS)
Item | Part number | Description |
---|---|---|
1 | 7980955 | WASHER |
2 | 9918517 | HALF-BEARING |
3 | 79022436 | BUSH |
4 | 79022437 | RING |
5 | 79069742 | KIT-AIR COMPRESSOR |
6 | 93159347 | COVER |
9 | 93161294 | KIT-AIR COMPRESSOR |
10 | 93161295 | KIT-AIR COMPRESSOR Ø65 MM |
11 | 93161296 | KIT-AIR COMPRESSOR Ø65,5 MM |
12 | 93161297 | KIT-AIR COMPRESSOR Ø65 MM |
13 | 93161298 | KIT-AIR COMPRESSOR Ø65,5 MM |
15 | 93163017 | COMPR.CRANKSHAFT |
17 | 93161485 | KIT-AIR COMPRESSOR |
18 | 93190969 | COMPRESS.CONN.ROD ASSY |
19 | 93161838 | KIT-AIR COMPRESSOR |
