F1CE0481F*C503

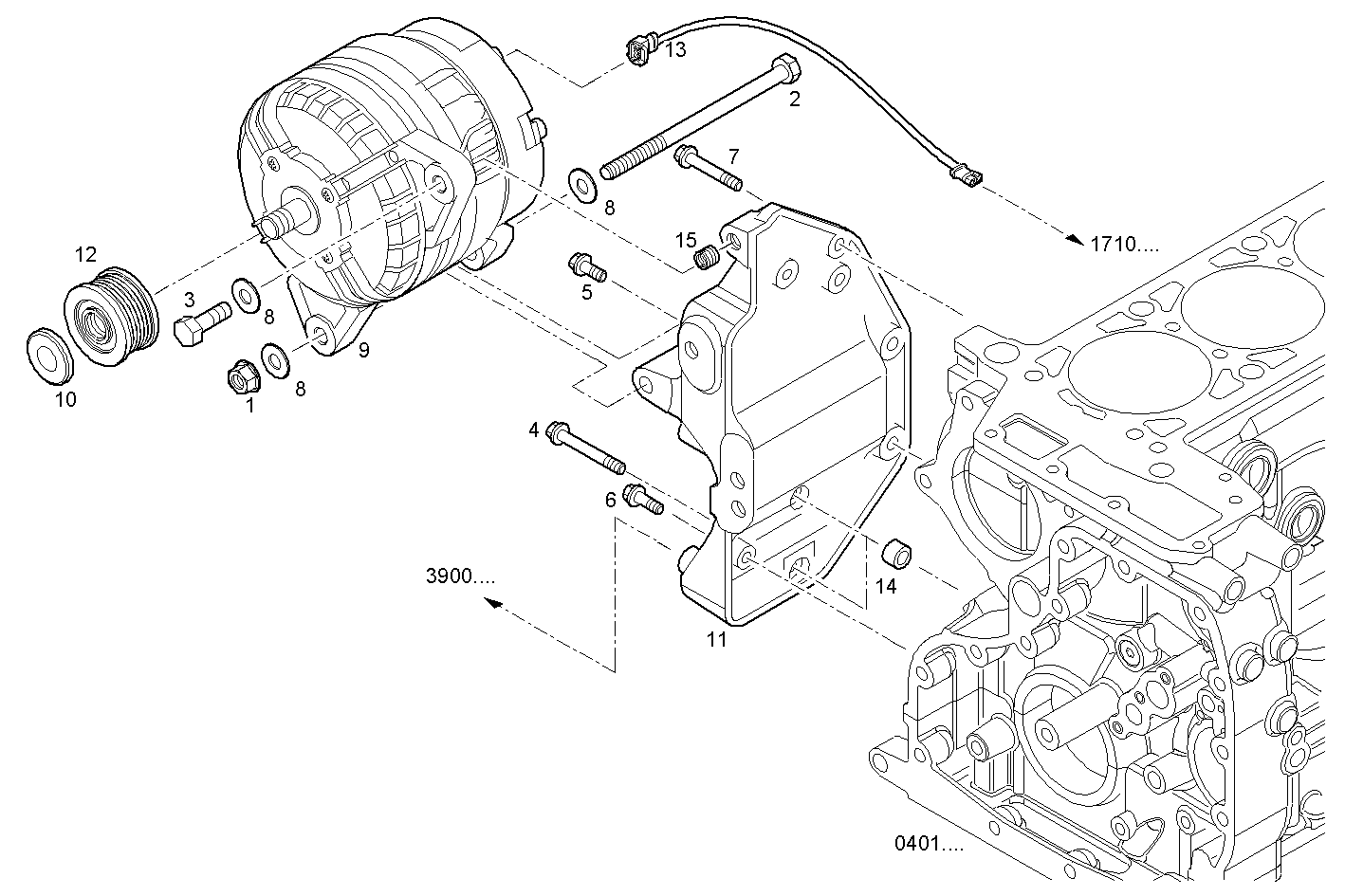

4000.011 GENERATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 14059411 | HEXAGON NUT M10X1,25 |
| 2 | 15972424 | HEXAGON BOLT M10X1,25X130 MM |
| 3 | 16288524 | HEXAGON BOLT M10X1,25X30 MM |
| 4 | 16289624 | HEXAGON BOLT M10X1,25X100 MM |
| 5 | 16673835 | HEXAGON BOLT M8X30 MM |
| 6 | 16587325 | HEXAGON BOLT M10X35 MM |
| 7 | 16592525 | HEXAGON BOLT M8X70 MM |
| 8 | 17097124 | WASHER 10x21 |
| 9 | 504057813 | ALTERNATOR 140A - 14V |
| 10 | 504094102 | COVER |
| 11 | 504218849 | GENERATOR SUPPORT ASSY |
| 12 | 504229261 | GENERATOR PULLEY |
| 13 | 504253935 | WIRE/CABLE |
| 14 | 504121226 | DOWEL PIN |
| 15 | 500371139 | DOWEL PIN |
