F1CE0481H*C003

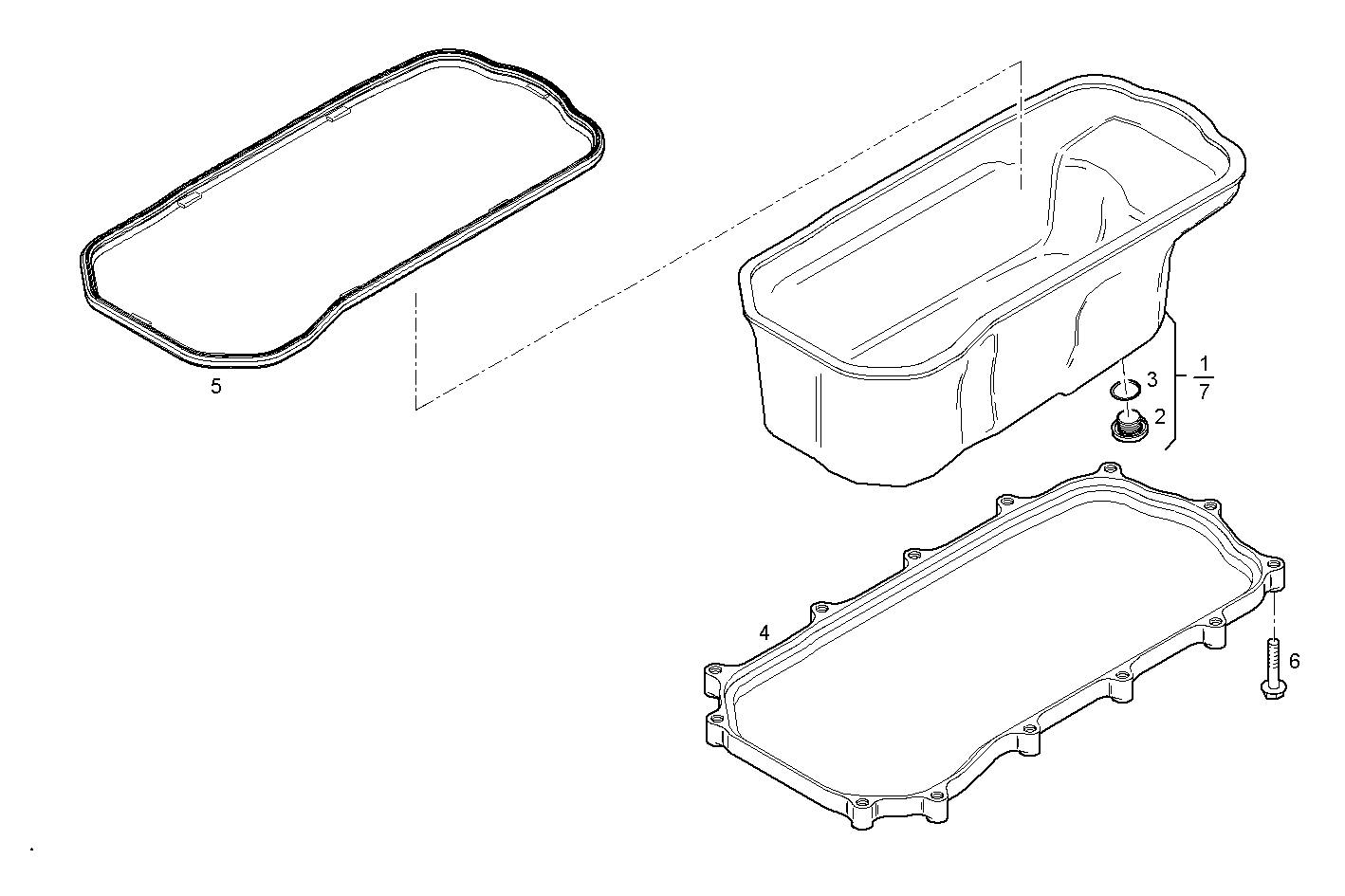

0420.231 OIL SUMP
Item | Part number | Description |
---|---|---|
1 | 504083971 | OIL SUMP ASSY [UP TO # 158649] |
2 | 4894139 | THREADED PLUG M22X1,5 |
3 | 17282280 | O-RING Ø2,62X23,47 MM |
4 | 504083379 | SPACING BAR |
5 | 504083813 | OIL SUMP GASKET |
6 | 16586625 | HEXAGON BOLT M8X35 MM |
7 | 504104359 | OIL SUMP ASSY [FROM # 158650] |
