F1CE0486A*A001

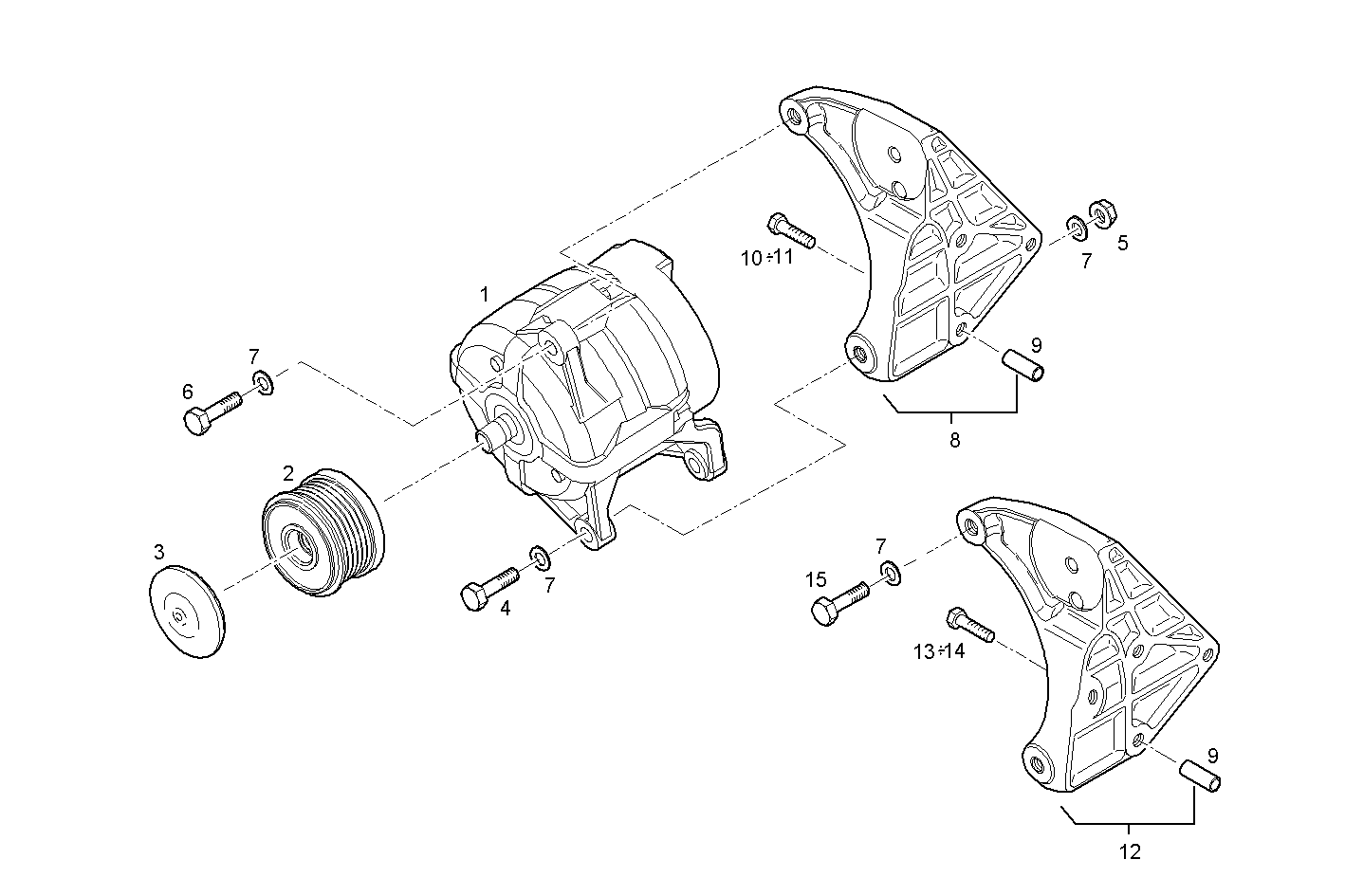

4000.179 GENERATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 504087183 | ALTERNATOR 110A - 14V |
| 2 | 504088796 | GENERATOR PULLEY |
| 3 | 504094102 | COVER |
| 4 | 15972424 | HEXAGON BOLT M10X1,25X130 MM |
| 5 | 14059411 | HEXAGON NUT M10X1,25 |
| 6 | 16587325 | HEXAGON BOLT M10X35 MM |
| 7 | 17097124 | WASHER 10x21 |
| 8 | 504093925 | GENERATOR SUPPORT [UP TO # 259035] |
| 9 | 500371139 | DOWEL PIN |
| 10 | 16586625 | HEXAGON BOLT M8X35 MM |
| 11 | 16592325 | HEXAGON BOLT |
| 12 | 504115734 | GENERATOR SUPPORT [FROM # 259036] |
| 13 | 16297721 | HEXAGON BOLT M8x77 |
| 14 | 16586825 | HEXAGON BOLT M8X1.25X45 MM |
